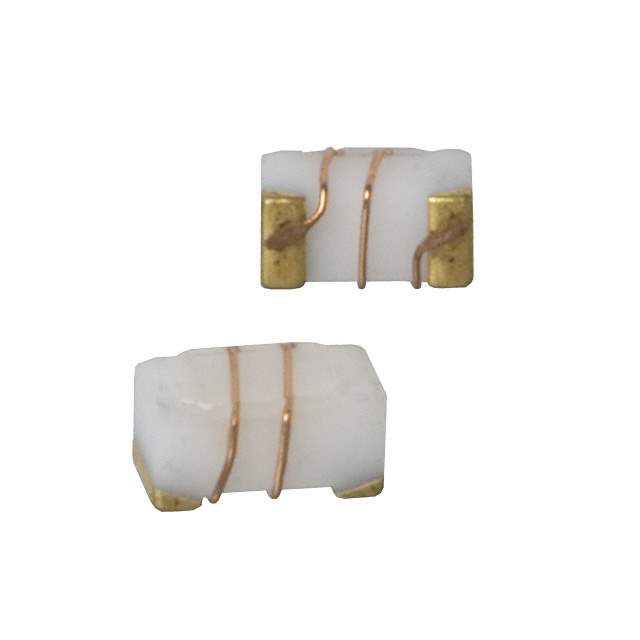

Same model may have multiple batches, images only for reference.

PE-0603CD220KTT

Name: PE-0603CD220KTT
Brand: Pulse
SKU: 503704
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PE-0603CD220KTT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 22NH 700MA 190 MOHM
Datasheet	PE-0603CD220KTT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Corporation
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ceramic
Inductance	22nH
Tolerance	±10%
Current Rating	700mA
DC Resistance (DCR)	190 mOhm Max
Q @ Freq	35 @ 250MHz
Frequency - Self Resonant	3GHz
Temperature Range - Operating	-40°C to 125°C
Frequency - Test	250MHz
Mounting	SMD (SMT)
Case / Package	0603 (1608 Metric)
Height - Seated (Max)	0.040" (1.02mm)
Win Source Part Number	1087266-PE-0603CD220KTT
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PE-0603CD220KTT CAD Model

Alternative Products

Description

The Pulse Electronics Corporation 1087266-PE-0603CD220KTT is a wirewound inductor with a current rating of 700mA and an inductance of 22nH.

Current Rating: 700mA
Inductance: 22nH
Tolerance: ±10%
DC Resistance (DCR): 190 mOhm Max
Q @ Freq: 35 @ 250MHz
Frequency Range: -40°C to 125°C
Material: Ceramic
Mounting Type: SMD (SMT)
Height: 0.040” (1.02mm)
Package: 0603 (1608 Metric)
Popularity: Popular
Supply and Demand Status: Balanced
