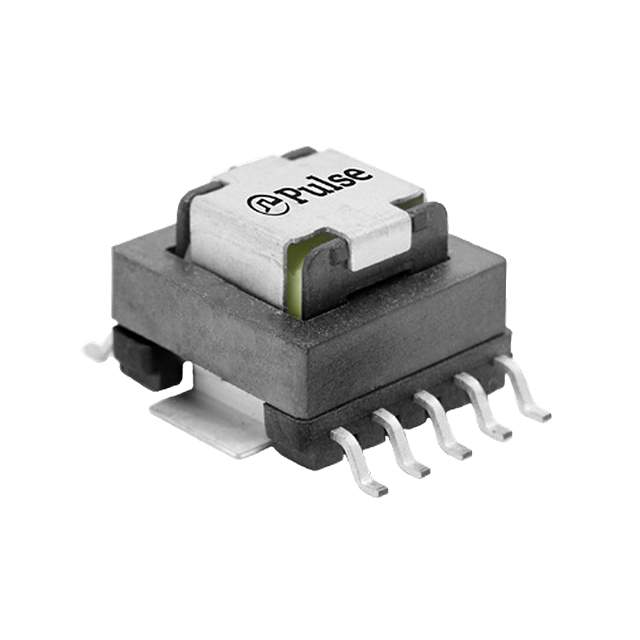

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr Pulse Electronics Power
Series PB002XNL
Package Tray
Frequency Range 50kHz ~ 500kHz
Type Invasive
Current Rating (Amps) 35 A
Inductance 22.4 mH
DC Resistance (DCR) 0.42mOhm Primary, 2.9Ohm Secondary
Mounting SMD (SMT)
Dimension 0.591" L x 0.784" W (15.00mm x 19.91mm)
Height - Seated (Max) 0.394" (10.00mm)
Termination Style Gull Wing
Other Names PB0027NL,553-1545
Standard Package 70
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232841-PB0027NL
Ultra Librarian 3D Model Ultra Librarian PB0027NL CAD Model

Description

The PB002XNL series current sense transformer by Pulse Electronics Power is a gull wing invasive type transformer with a tray package.

  • Transformer Type: Current Sense
  • Termination Style: Gull Wing Invasive
  • Package: Tray
  • Inductance: 22.4 mH
  • Frequency Range: 50 kHz to 500 kHz
  • Current Rating: 35 A
  • DC Resistance: 0.42mOhm primary and 2.9Ohm secondary
  • Dimension: 0.591" L x 0.784" W (15.00mm x 19.91mm)
  • Height: 0.394" (10.00mm)
  • Mounting Type: SMD (SMT)
  • Series: PB002XNL
  • Standard Package: 70
  • ECCN: EAR99
  • REACH: REACH Unaffected
  • HTSUS Code: 8504.31.2000
