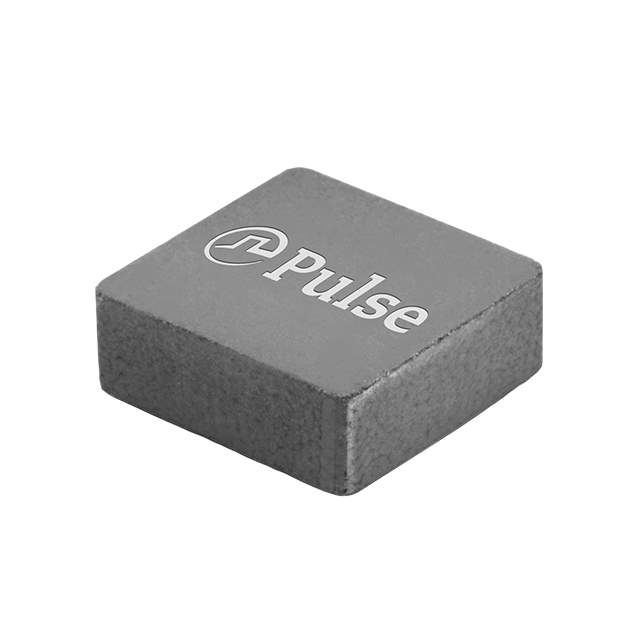

The PA5004.331NLT is a surface mount power inductor manufactured by Pulse Electronics. It is designed for use in a variety of power supply applications, offering a compact size and efficient energy storage capabilities.

Applications

• DC-DC converters
• Voltage regulators
• Power amplifiers
• Filtering circuits in power supplies
• Notebook computers
• Portable power devices

Features

• Surface mount design for automated assembly
• Low DCR (DC Resistance) for high efficiency
• High saturation current for stable inductance under high current conditions
• Shielded construction for low EMI (Electromagnetic Interference)
• Compact size

Benefits

• Improved power efficiency due to low DCR, reducing heat generation and energy waste.
• Minimized EMI due to shielded construction, preventing interference with other components.
• Stable performance in high current applications due to high saturation current.
• Reduced board space requirements due to its compact size.
• Cost-effective solution for power management applications.

Specifications

While specific specifications require consulting the datasheet, key parameters generally include inductance value (e.g., in μH), DCR (in mΩ), saturation current (in A), RMS current (in A), and operating temperature range. Detailed dimensions are also specified in the datasheet.

Note: Always refer to the manufacturer's datasheet for precise electrical and mechanical specifications before using this component in a design.
