Same model may have multiple batches, images only for reference.

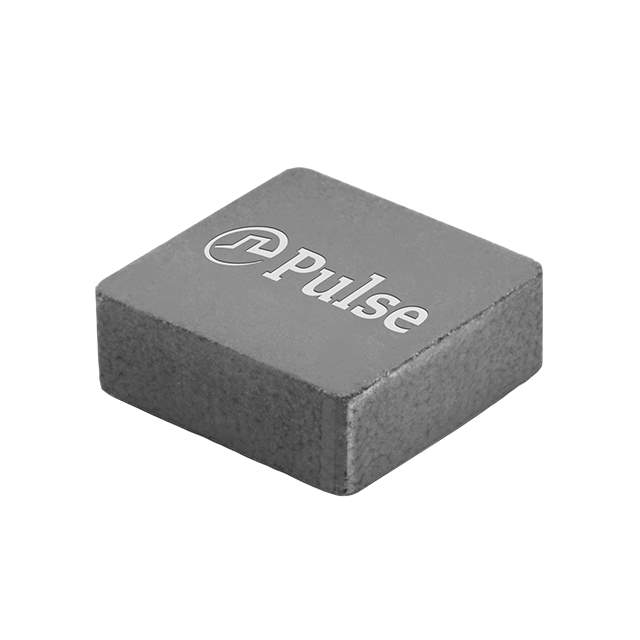

PA5002.151NLT Real Image
Same model may have multiple batches, images only for reference.

PA5002.151NLT

Part No PA5002.151NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 150NH 18.8A 4.6MOHM SM / 150 nH Shielded Molded Inductor 18.8 A 4.6mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA5002.XXXNLT
Package Tape & Reel
Type Molded
Material - Core Ferrite
Inductance 150 nH
Tolerance ±20%
Current Rating (Amps) 18.8 A
Current - Saturation (Isat) 30A
Shielding Shielded
DC Resistance (DCR) 4.6mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max) 0.083" (2.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names -1536-PA5002.151NLTCT,553-4072-6,553-4072-1,553-4072-2
Standard Package 3,000
Win Source Part Number 1083551-PA5002.151NLT
Ultra Librarian 3D Model Ultra Librarian PA5002.151NLT CAD Model

Description

The Pulse 1083551-PA5002.151NLT is a shielded fixed inductor that has an inductance of 150 nH and a tolerance of ±20 percent.

  • Inductance: 150 nH
  • Tolerance: ±20 percent
  • Operating Temperature: -40°C to 125°C
  • Maximum DC Resistance (DCR): 4.6 mOhm
  • Package/Case: Nonstandard
  • Standard Package: 3,000
  • Current Rating: 18.8 A
  • Current Saturation (Isat): 30A
