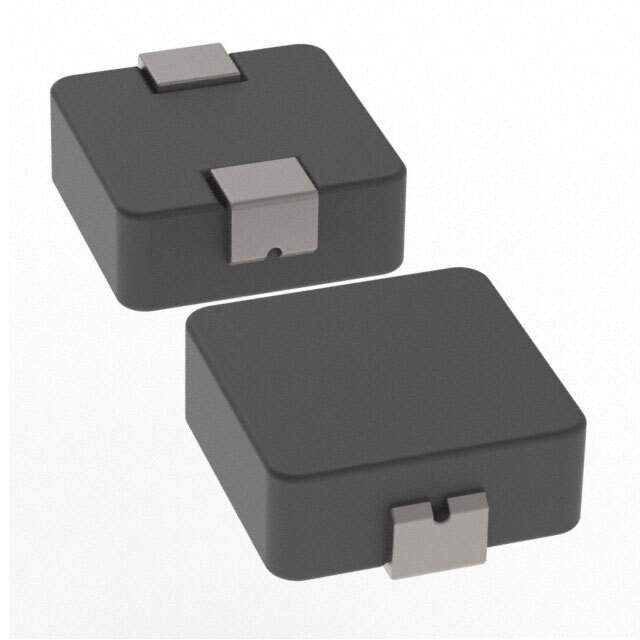

PA4342.561ANLT Real Image
Same model may have multiple batches, images only for reference.

PA4342.561ANLT

Part No PA4342.561ANLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 560NH 23A 1.8 MOHM SMD  /  560 nH Shielded Molded Inductor 23 A 1.8mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA4342.XXXANLT
Package Tape & Reel
Type Molded
Inductance 560 nH
Tolerance ±20%
Current Rating (Amps) 23 A
Current - Saturation (Isat) 29A
Shielding Shielded
DC Resistance (DCR) 1.8mOhm Max
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 553-4012-1,553-4012-2,553-4012-6
Standard Package 500
Win Source Part Number 1169411-PA4342.561ANLT
Ultra Librarian 3D Model Ultra Librarian PA4342.561ANLT CAD Model

Description

The Pulse PA4342.561ANLT is a molded type fixed inductor with a shielding feature.

  • Packaging: Tape and reel
  • Standard Package: 500
  • Inductance: 560 nH
  • Tolerance: ±20%
  • DC Resistance: 1.8mOhm Max
  • Height: 0.157" (4.00mm)
  • Dimension: 0.433" L x 0.394" W (11.00mm x 10.00mm)
  • Current Rating: 23 A
  • Saturation Current: 29A
  • Temperature Range: -55°C to 155°C
