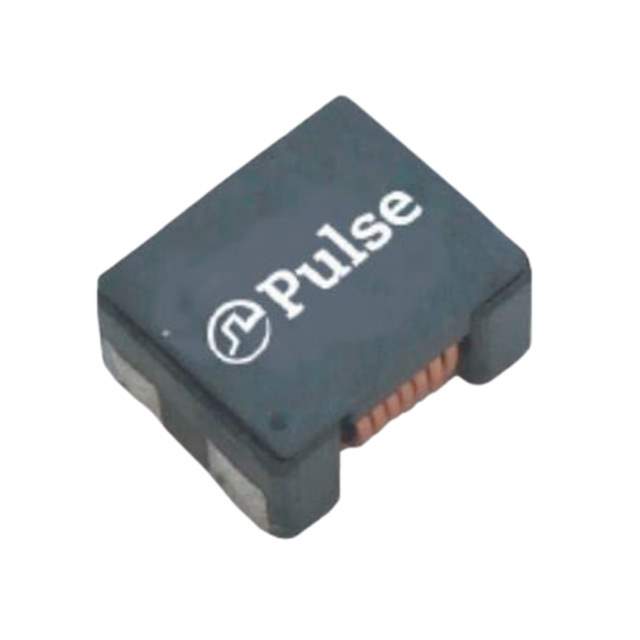

PA4339.101NLT Real Image
Same model may have multiple batches, images only for reference.

PA4339.101NLT

Part No PA4339.101NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 1.8UH 9A 2LN 140 OHM SMD / 1.8 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 140 Ohms @ 100 MHz 9A DCR 10mOhm
Datasheet
PA4339.101NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Pulse Electronics
Packaging Reel - TR
Number of Lines 2
Impedance @ Frequency 140 Ohms @ 100 MHz
Inductance @ Frequency 1.8 µH @ 100 kHz
Current Rating (Max) 9A
DC Resistance (DCR) (Max) 10mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Size / Dimension 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max) 0.150" (3.80mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 553-4125-2,553-4125-1,553-4125-6
Standard Package 1,500
Win Source Part Number 1328598-PA4339.101NLT
Ultra Librarian 3D Model Ultra Librarian PA4339.101NLT CAD Model

Description

The Pulse Electronics 1328598-PA4339.101NLT is a surface mount common mode choke filter with a voltage rating of 80V DC.

  • Mounting Type: Surface Mount
  • Voltage Rating: 80V DC
  • Current Rating: 9A
  • Maximum DC Resistance: 10mOhm
  • Size: 0.276 inches in length and 0.236 inches in width
  • Height: 0.150 inches
  • Number of Lines: 2
  • Impedance: 140 Ohms @ 100 MHz
  • Inductance: 1.8 microH @ 100 kHz
