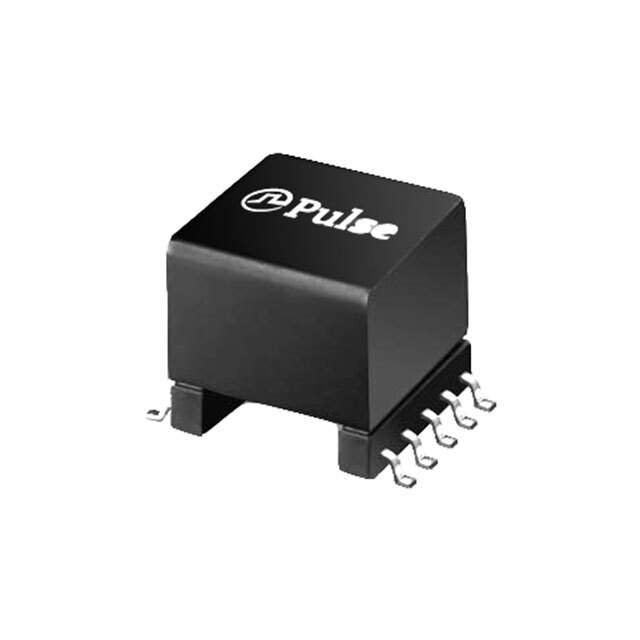

PA3855.003NLT Real Image
Same model may have multiple batches, images only for reference.

PA3855.003NLT

Part No PA3855.003NLT
Manufacturer Pulse
Catalog Switching Converter, SMPS Transformers
Description TRANSFORMER FLYBACK 41UH SMD / Flyback Converters For For DC/DC Converters SMPS Transformer 2250VDC Isolation 200kHz Surface Mount
Datasheet
PA3855.003NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Switching Converter, SMPS Transformers
Mfr Pulse Electronics Power
Series EP13Plus
Package Tape & Reel
Type For DC/DC Converters
Applications Flyback Converters
Voltage - Primary 33 ~ 57V
Voltage - Auxiliary 10V @ 50mA
Voltage - Isolation 2250VDC
Frequency 200kHz
Temperature Range - Operating -40°C ~ 130°C
Mounting SMD (SMT)
Dimension 0.571" L x 0.526" W (14.50mm x 13.36mm)
Height - Seated (Max) 0.551" (14.00mm)
Footprint 0.571" L x 0.695" W (14.50mm x 17.65mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 553-2131-6,PA3855003NLT,553-2131-1,553-2131-2
Standard Package 130
Win Source Part Number 1084044-PA3855.003NLT
Ultra Librarian 3D Model Ultra Librarian PA3855.003NLT CAD Model

Description

The PA3855.003NLT is an EP13Plus series switching converter, SMPS transformer designed for use in flyback converters.

  • Series: EP13Plus
  • Type: Switching Converter, SMPS Transformer
  • Application: Flyback Converter
  • Package: Tape and Reel
  • Voltage-Isolation: 2250VDC
  • Frequency: 200kHz
  • Max Seated Height: 0.551 inches (14.00mm)
  • Dimensions: 0.571 inches L x 0.526 inches W (14.50mm x 13.36mm)
  • Mounting Type: SMD (SMT)
  • Operating Temperature: -40°C to 130°C
  • Supplier: Pulse Electronics Power
  • Alternative Parts: 553-2131-6, PA3855003NLT, 553-2131-1, and 553-2131-2
