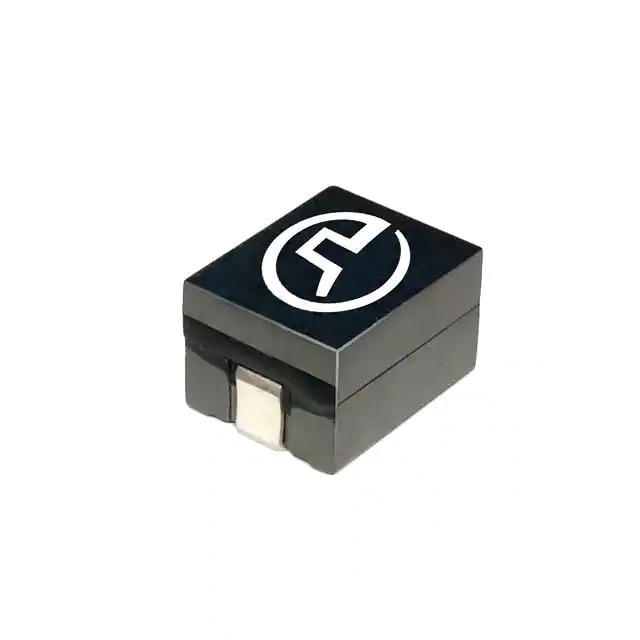

Same model may have multiple batches, images only for reference.

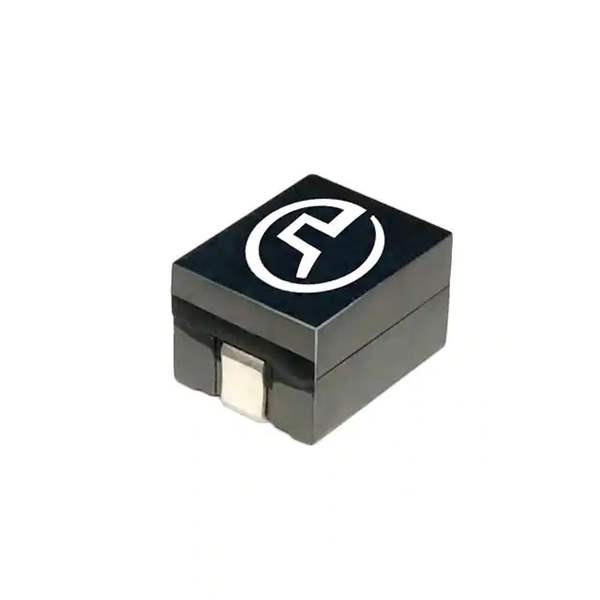

PA2202.231NL Pulse
Same model may have multiple batches, images only for reference.

PA2202.231NL

Part No PA2202.231NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 230NH 36A 0.48MOHM SMD
Datasheet
PA2202.231NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series PA2202.XXXNL
Package Tray
Product Status Active
Type -
Material - Core -
Inductance 230 nH
Tolerance ±15%
Current Rating (Amps) 36 A
Current - Saturation (Isat) 47A
Shielding Unshielded
DC Resistance (DCR) 0.48mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 130°C
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.476" L x 0.394" W (12.10mm x 10.00mm)
Height - Seated (Max) 0.236" (6.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1379427-PA2202.231NL
Ultra Librarian 3D Model Ultra Librarian PA2202.231NL CAD Model

Description

The Pulse Electronics PA2202.231NL is a fixed inductor designed for various applications that require inductance and current handling capabilities.

  • Temperature Range: -40°C to 130°C
  • Series: PA2202.XXXNL
  • Package: tray
  • Package/Case: nonstandard
  • Mounting Type: surface mount
  • Tolerance: ±15%
  • Current Rating: 36A
