Same model may have multiple batches, images only for reference.

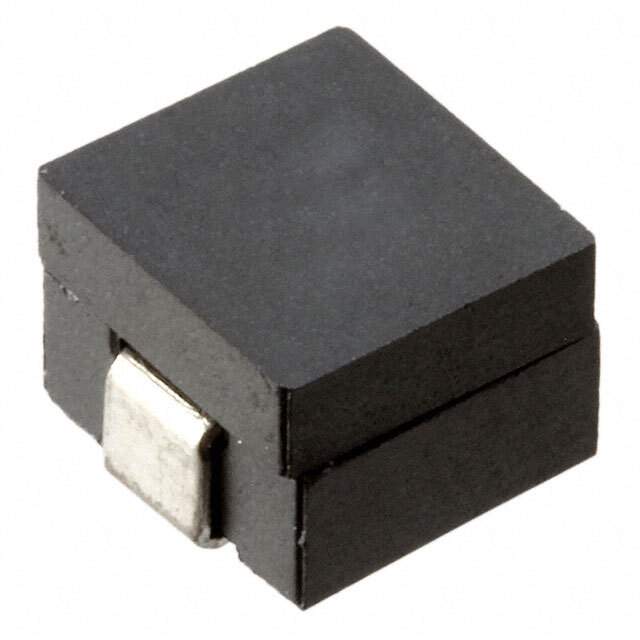

PA1212.101NLT Real Image
Same model may have multiple batches, images only for reference.

PA1212.101NLT

Part No PA1212.101NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 105NH 31A 0.46 MOHM
Datasheet
PA1212.101NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 105nH
Tolerance ±20%
Current Rating 31A
Current - Saturation 46A
DC Resistance (DCR) 0.46 mOhm
Temperature Range - Operating -40°C to 130°C
Mounting SMD (SMT)
Height - Seated (Max) 0.195" (4.96mm)
Win Source Part Number 133563-PA1212.101NLT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PA1212.101NLT CAD Model

Description

The Pulse Electronics Corporation 133563-PA1212.101NLT inductor is a high-performance component that can handle a current rating of 31A.

  • Inductance: 105nH
  • Height: 0.195" (4.96mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Current Saturation: 46A
  • DC Resistance (DCR): 0.46 mOhm
  • Operating Temperature Range: -40°C to 130°C
  • Category: inductors, coils, and chokes
