Same model may have multiple batches, images only for reference.

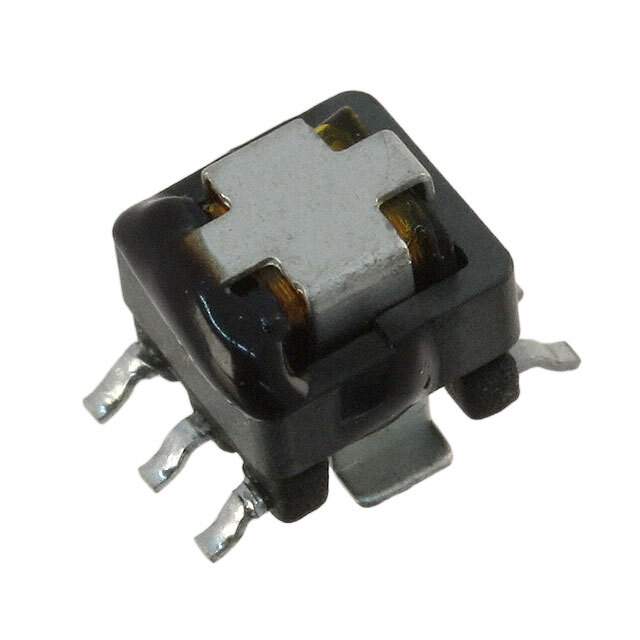

PA1005.070NLT Real Image
Same model may have multiple batches, images only for reference.

PA1005.070NLT

Part No PA1005.070NLT
Manufacturer Pulse
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:70 20A SMD
Datasheet
PA1005.070NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Estimated Pruduction Lead Time 15 Weeks
Manufacturer Pulse
Series PA1005.XXXNL
Package Reel - TR
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number PA1005070NLT, PA1005.070NLT-ND, 553-1528-2, 553-1528-1, 553-1528-6
Quantity per package 900
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929936-PA1005.070NLT
Ultra Librarian 3D Model Ultra Librarian PA1005.070NLT CAD Model

Description

The PA1005.XXXNL series Pulse Transformer is a high-quality electronic component that is designed to provide reliable performance.

  • Manufacturer: Pulse
  • Win Source Part Number: 929936-PA1005.070NLT
  • Category: Transformers
  • Packaging: Reel - TR
  • Popularity: High
  • Supply and Demand: Balanced
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 15 weeks
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8504.31.2000
  • Other Part Numbers: PA1005070NLT, PA1005.070NLT-ND, 553-1528-2, 553-1528-1, 553-1528-6
