Same model may have multiple batches, images only for reference.

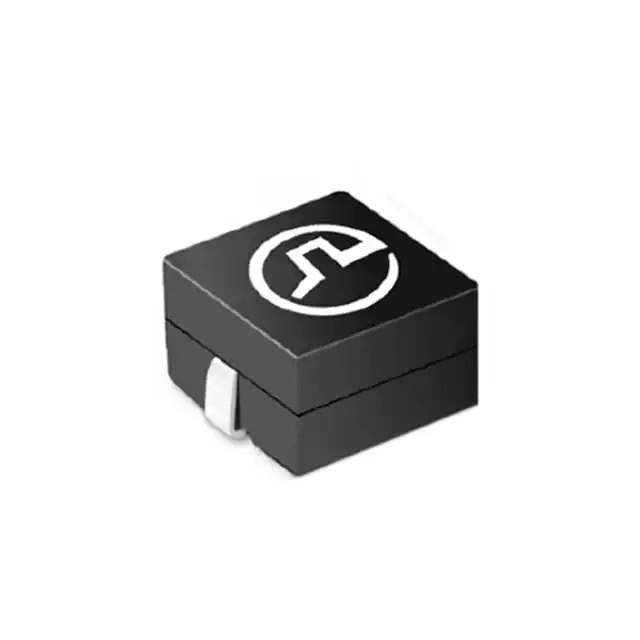

PA0513.321NL Real Image
Same model may have multiple batches, images only for reference.

PA0513.321NL

Part No PA0513.321NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 320NH 41A 0.32MOHM SMD / 320 nH Shielded Inductor 41 A 0.32mOhm Nonstandard
Datasheet
PA0513.321NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PA0513NL
Package Tray
Product Status Obsolete
Inductance 320 nH
Tolerance ±20%
Current Rating (Amps) 41 A
Current - Saturation (Isat) 50A
Shielding Shielded
DC Resistance (DCR) 0.32mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.530" L x 0.510" W (13.46mm x 12.95mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 65 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 929934-PA0513.321NL
Ultra Librarian 3D Model Ultra Librarian PA0513.321NL CAD Model

Description

The 929934-PA0513.321NL is a fixed inductor from the PA0513NL series.

  • Series: PA0513NL
  • Type: Shielded Inductor
  • Size: 0.530" L x 0.510" W (13.46mm x 12.95mm)
  • Inductance: 320 nH
  • Maximum Seated Height: 0.315" (8.00mm)
  • Mounting: Surface Mount
  • Package: Nonstandard
  • DC Resistance (DCR): 0.32mOhm
  • Operating Temperature Range: -40°C to 130°C
  • Current Rating: 41A
  • Tolerance: ±20%
  • Manufacturer: Pulse
  • Status: Obsolete
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.50.8000
