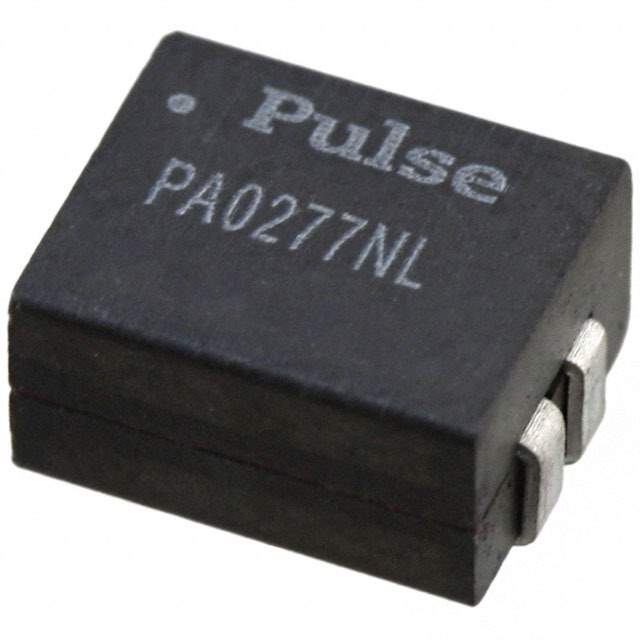

Same model may have multiple batches, images only for reference.

PA0277NL

Name: PA0277NL
Brand: Pulse
SKU: 719855
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PA0277NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 700NH 10.7A 95 MOHM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Power
Packaging	Tube
Inductance	700nH
Tolerance	±20%
Current Rating (Amps)	10.7A
Current - Saturation	12.6A
Shielding	Unshielded
DC Resistance (DCR)	95mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Mounting Style	SMD
Manufacturer Package	Nonstandard
Parts Dimension	0.350" L x 0.250" W (8.89mm x 6.35mm)
Height - Seated (Maximum)	0.177" (4.50mm)
Manufacturer Pack Quantity	170
MSL Level	1 (Unlimited)
Win Source Part Number	719855-PA0277NL
Popularity	Low
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PA0277NL CAD Model

Alternative Products

Description

The PA0277NL is a surface-mount, unshielded power inductor that offers a high inductance of 700 nH and a current rating of 10.7 A.

Inductance: 700 nH
Current Rating: 10.7 A
DC Resistance: 95 mΩ
Tolerance: ±20%
Operating Temperature Range: -40°C to +130°C
Compliance: UL60950-1, EN60950-1, IEC60950-1
Package Type: Non-Standard
Packaging: Tube
