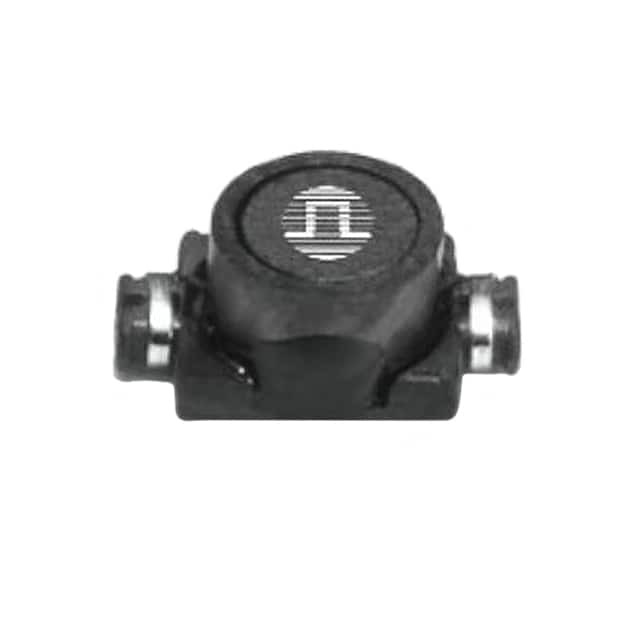

Same model may have multiple batches, images only for reference.
P1174.102NLT
Same model may have multiple batches, images only for reference.

P1174.102NLT

Part No P1174.102NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1UH 3A 13 MOHM SMD
Datasheet
P1174.102NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series P1174NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 3A
Shielding Shielded
DC Resistance (DCR) 13mOhm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.265" L x 0.175" W (6.73mm x 4.45mm)
Height - Seated (Max) 0.110" (2.79mm)
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 888296-P1174.102NLT
Ultra Librarian 3D Model Ultra Librarian P1174.102NLT CAD Model

Description

The 888296-P1174.102NLT is a fixed inductor from the P1174NL series manufactured by Pulse.

  • Series: P1174NL
  • Type: Wirewound
  • Shielding: Shielded
  • Packaging: Tape & reel
  • Dimensions: 0.265" L x 0.175" W (6.73mm x 4.45mm)
  • Seated Height (Max): 0.110" (2.79mm)
  • Inductance: 1 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 13mOhm
  • Current Rating: 3A
  • Operating Temperature: -40°C to 130°C
  • ECCN: Compliant
  • REACH: Unaffected
