Same model may have multiple batches, images only for reference.

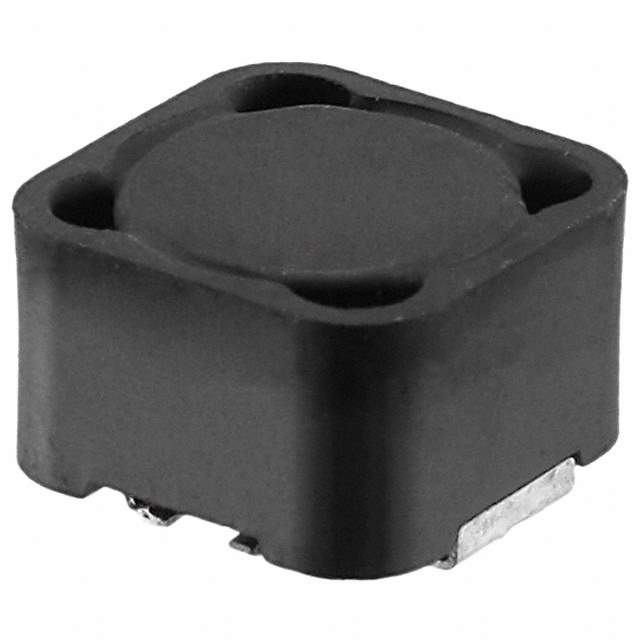

P1172.272NLT Real Image
Same model may have multiple batches, images only for reference.

P1172.272NLT

Part No P1172.272NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 2.7UH 9A 7.3 MOHM SMD
Datasheet
P1172.272NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 2.7μH
Tolerance ±30%
Current Rating 9A
Current - Saturation 11A
DC Resistance (DCR) 7.3 mOhm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C to 130°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.315" (8.00mm)
Win Source Part Number 209548-P1172.272NLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P1172.272NLT CAD Model

Description

The Pulse Electronics Corporation 209548-P1172.272NLT wirewound inductor is a high-quality electronic component designed for use in a variety of circuits.

  • Current Rating: 9A
  • Inductance: 2.7μH
  • Height: 0.315" (8.00mm)
  • Mounting: Reel - TR
  • Mounting Type: SMD (SMT)
  • Tolerance: ±30%
  • Current Saturation: 11A
  • DC Resistance: 7.3 mOhm Max
  • Operating Temperature: -40°C to 130°C
