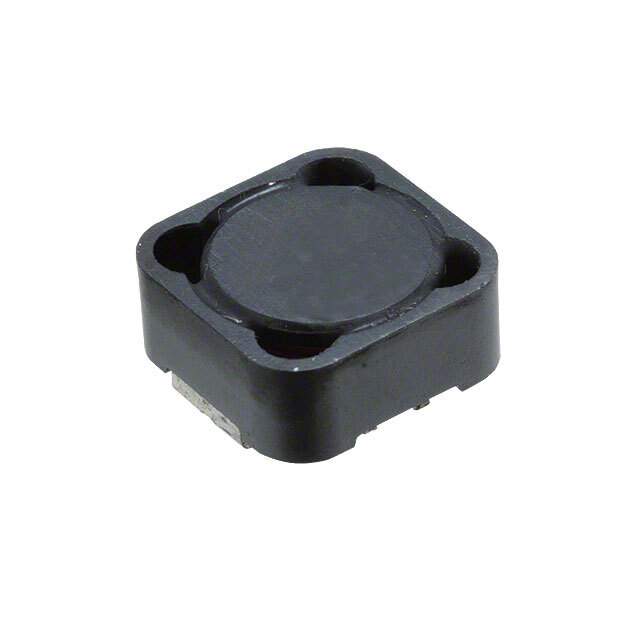

P1171.683NLT Real Image
Same model may have multiple batches, images only for reference.

P1171.683NLT

Part No P1171.683NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 68UH 1.8A 120 MOHM SMD / Inductor Power Shielded Wirewound 68uH/51uH 20% 100KHz 1.8A 0.12Ohm DCR Automotive T/R
Datasheet
P1171.683NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Series P1171NL
Packaging Reel package
Type Wirewound
Inductance 68μH
Tolerance ±20%
Current Rating 1.8A
Current - Saturation 1.8A
Shielding Shielded
DC Resistance (DCR) 120 mOhm Max
Frequency - Self Resonant 6.9MHz
Operating Temperature Range -40°C ~ 130°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Win Source Part Number 791098-P1171.683NLT
Popularity Medium
Supply and Demand Status Balance
Family Name P1171NL
Introduction Date March 24, 2004
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian P1171.683NLT CAD Model

Description

The Pulse Electronics Corporation 791098-P1171.683NLT series P1171NL transformer is a wirewound type transformer that has an inductance of 68μH.

  • Mounting: SMD
  • Tolerance: ±20%
  • Supply and Demand Status: Balanced
  • Estimated EOL Date: 2027
  • DC Resistance (DCR): 120 mOhm Max
  • Dimension: 0.482" L x 0.482" W (12.24mm x 12.24mm)
  • Height Seated: 0.236" (6.00mm)
  • Alternative Parts: P1171.683NL
  • MSL Level: Vendor Undefined
