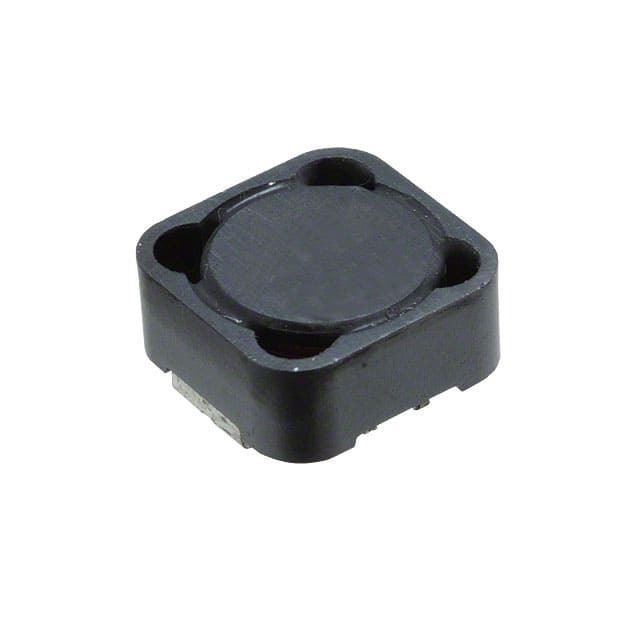

Same model may have multiple batches, images only for reference.
P1171.302NLT
Same model may have multiple batches, images only for reference.

P1171.302NLT

Part No P1171.302NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 3UH 8.3A 7.7 MOHM SMD / 3 μH Shielded Wirewound Inductor 8.3 A 7.7mOhm Max Nonstandard
Datasheet
P1171.302NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series P1171NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 3 µH
Tolerance ±30%
Current Rating (Amps) 8.3 A
Current - Saturation (Isat) 8.3A
Shielding Shielded
DC Resistance (DCR) 7.7mOhm Max
Frequency - Self Resonant 38MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max) 0.236" (6.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 929792-P1171.302NLT
Ultra Librarian 3D Model Ultra Librarian P1171.302NLT CAD Model

Description

The 929792-P1171.302NLT is a fixed inductor in the P1171NL series from Pulse.

  • Type: wirewound
  • Mounting Type: surface mount
  • Inductance: 3 µH
  • Tolerance: ±30%
  • Size: 0.482" L x 0.482" W (12.24mm x 12.24mm)
  • Seated Height: 0.236" (6.00mm)
  • Shielded: yes
  • Package: tape & reel
  • Quantity: 500 pcs
  • DC Resistance (DCR): 7.7mOhm Max
  • Current Rating: 8.3A
  • Operating Temperature: -40°C to 130°C
