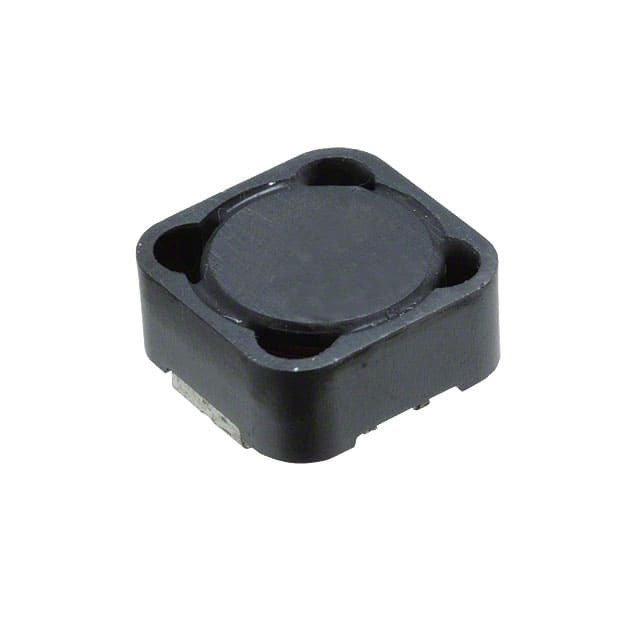

Same model may have multiple batches, images only for reference.
P1170.502NLT
Same model may have multiple batches, images only for reference.

P1170.502NLT

Part No P1170.502NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 5UH 6.4A 12 MOHM SMD
Datasheet
P1170.502NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series P1170NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 5 µH
Tolerance ±30%
Current Rating (Amps) 6.4 A
Current - Saturation (Isat) 6.4A
Shielding Shielded
DC Resistance (DCR) 12mOhm Max
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max) 0.236" (6.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 845479-P1170.502NLT
Ultra Librarian 3D Model Ultra Librarian P1170.502NLT CAD Model

Description

The 845479-P1170.502NLT is a fixed inductor from Pulse.

  • Type: Wirewound
  • Size / Dimension: 0.482" L x 0.482" W (12.24mm x 12.24mm)
  • Inductance: 5 μH
  • Height - Seated (Max): 0.236" (6.00mm)
  • Packaging: Tape & Reel (TR)
  • Standard Package: 500 pcs
  • Tolerance: ±30%
  • DC Resistance (DCR): 12mOhm (Max)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 130°C
  • Manufacturer: Pulse
