Same model may have multiple batches, images only for reference.

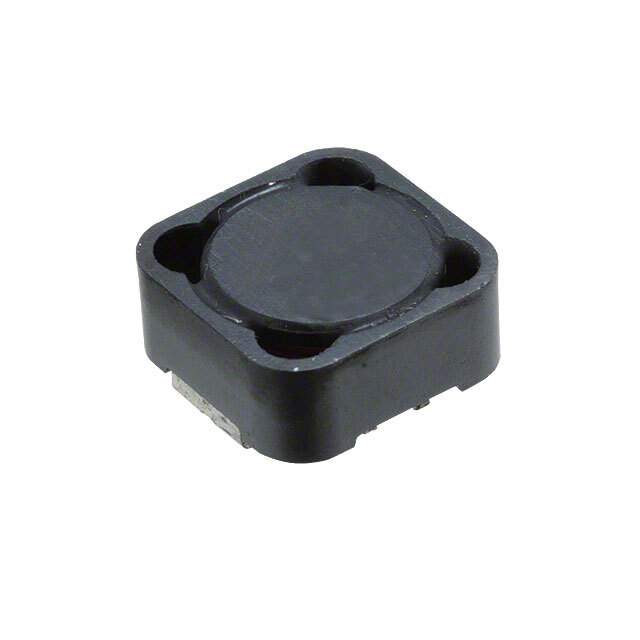

P1170.123NLT Real Image
Same model may have multiple batches, images only for reference.

P1170.123NLT

Part No P1170.123NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 12UH 4.2A 27 MOHM SMD / Inductor Power Shielded Wirewound 12uH/9uH 20% 100KHz 4.2A 0.027Ohm DCR T/R
Datasheet
P1170.123NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Series P1170NL
Packaging Reel package
Type Wirewound
Inductance 12μH
Tolerance ±20%
Current Rating 4.2A
Current - Saturation 4.3A
Shielding Shielded
DC Resistance (DCR) 27 mOhm Max
Frequency - Self Resonant 18MHz
Operating Temperature Range -40°C ~ 130°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Win Source Part Number 791097-P1170.123NLT
Popularity Medium
Supply and Demand Status Limited
Family Name P1170NL
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian P1170.123NLT CAD Model

Description

The Pulse Electronics Corporation transformer with part number 791097-P1170.123NLT belongs to the P1170NL series.

  • Type: Wirewound
  • Shielding: Shielded
  • Package: Reel
  • Inductance: 12μH
  • Mounting Style: SMD
  • Temperature Range: -40°C ~ 130°C
  • Tolerance: ±20%
  • DC Resistance (DCR): 27 mOhm Max
  • Seated Height: 0.236" (6.00mm)
  • Dimension: 0.482" L x 0.482" W (12.24mm x 12.24mm)
  • Alternative Part Cross-Reference: P1171.123NLT, P1170.123NL
  • ECCN: EAR99
  • Manufacturer Country: China
  • Estimated EOL Date: 2027
  • Popularity: Medium
