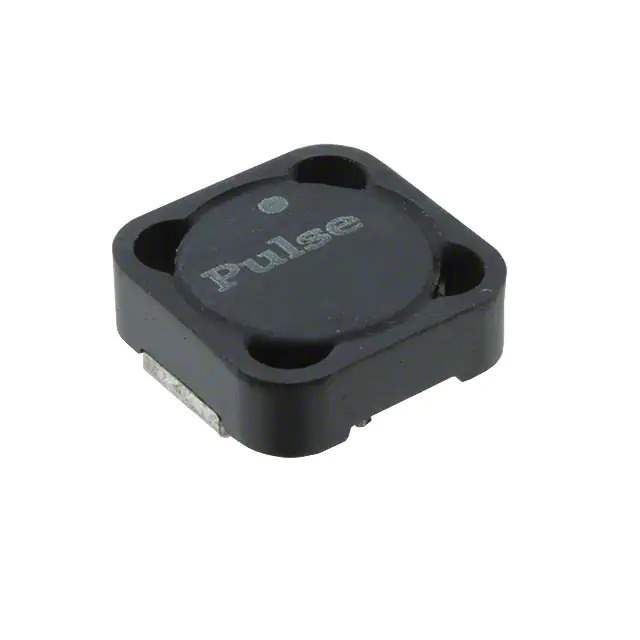

Same model may have multiple batches, images only for reference.

P1168.102NLT

Name: P1168.102NLT
Brand: Pulse
SKU: 888292
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P1168.102NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 1UH 11A 3.7 MOHM SMD / 1 μH Shielded Wirewound Inductor 11 A 3.7mOhm Max Nonstandard
Datasheet	P1168.102NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	P1168NL
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Inductance	1 µH
Tolerance	±30%
Current Rating (Amps)	11 A
Current - Saturation (Isat)	14A
Shielding	Shielded
DC Resistance (DCR)	3.7mOhm Max
Frequency - Self Resonant	40MHz
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)	0.177" (4.50mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	888292-P1168.102NLT
Ultra Librarian 3D Model	Ultra Librarian P1168.102NLT CAD Model

Alternative Products

Description

The 888292-P1168.102NLT is a wirewound fixed inductor from the P1168NL series by Pulse.

Series: P1168NL
Size: 0.482" L x 0.482" W (12.24mm x 12.24mm)
Inductance: 1 µH
Seated Height (Max): 0.177" (4.50mm)
DC Resistance (DCR): 3.7mOhm
Current Rating: 11 A
Saturation Current: 14A
Operating Temperature: -40°C to 130°C
Package: Nonstandard
Packaging: Tape & reel
Shielding: Shielded
