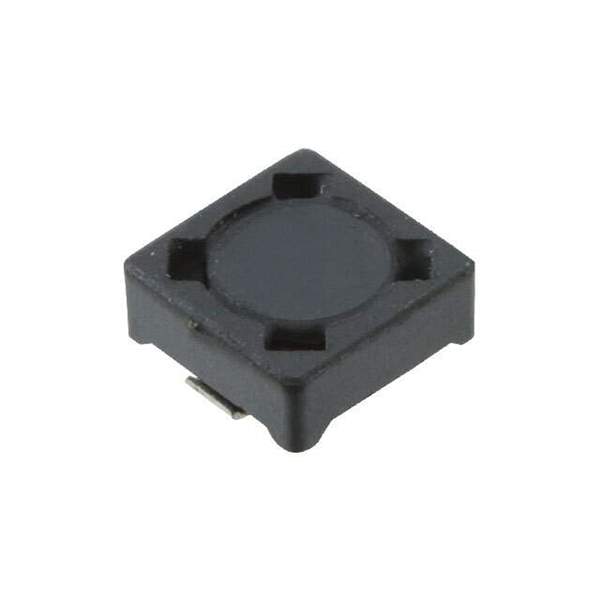

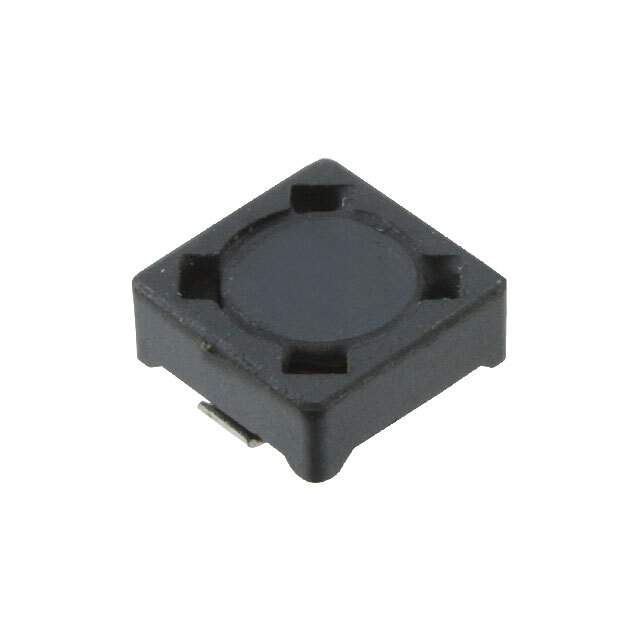

P1166.104NLT Real Image
Same model may have multiple batches, images only for reference.

P1166.104NLT

Part No P1166.104NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 100UH 560MA 580 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics Power
Packaging Reel
Type Wirewound
Inductance 100μH
Tolerance ±20%
Current Rating (Amps) 560mA
Current - Saturation 560mA
Shielding Shielded
DC Resistance (DCR) 580mOhm Max
Frequency - Self Resonant 7.5MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.297" L x 0.297" W (7.54mm x 7.54mm)
Height - Seated (Maximum) 0.138" (3.51mm)
Manufacturer Pack Quantity 1,200
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803675-P1166.104NLT
Ultra Librarian 3D Model Ultra Librarian P1166.104NLT CAD Model

Description

The P1166.104NLT is a wirewound type inductor manufactured by Pulse Electronics Power.

  • Shielded Design: Yes
  • Inductance: 100μH ±20%
  • Current Saturation: 560mA
  • Frequency - Self-Resonant: 7.5MHz
  • DC Resistance (DCR): 580mOhm Max
  • Supply and Demand Status: Balanced
  • Popularity: Medium
