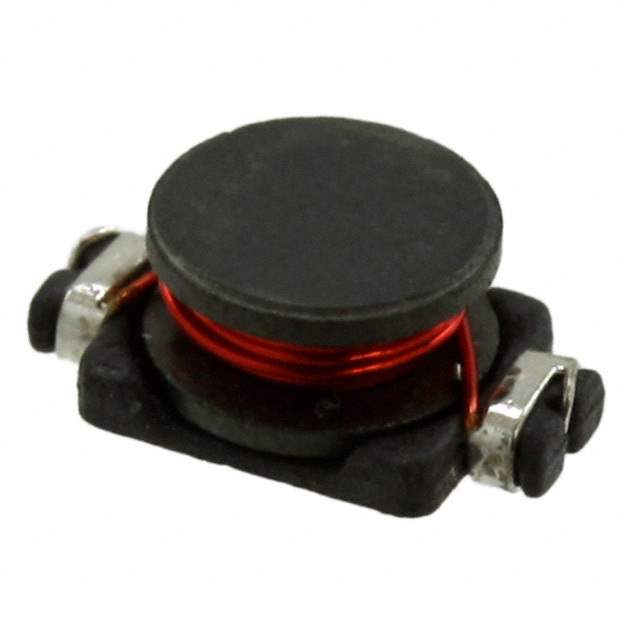

Same model may have multiple batches, images only for reference.

P0770.153NLT

Name: P0770.153NLT
Brand: Pulse
SKU: 1135288
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P0770.153NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 15UH 900MA 230MOHM SMD / 15 µH Unshielded Wirewound Inductor 900 mA 230mOhm Max Nonstandard
Datasheet	P0770.153NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	P0770NL
Package	Tape & Reel
Type	Wirewound
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	900 mA
Current - Saturation (Isat)	900mA
Shielding	Unshielded
DC Resistance (DCR)	230mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max)	0.115" (2.92mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	553-1944-6,P0770.153NL,P0770153NLT,553-1944-1,553-1944-2,P0770.153NLT-ND
Standard Package	2,500
Win Source Part Number	1135288-P0770.153NLT
Ultra Librarian 3D Model	Ultra Librarian P0770.153NLT CAD Model

Alternative Products

Description

The Pulse P0770.153NLT is a wirewound fixed inductor that falls under the category of electronic components.

Win Source Part Number: 1135288-P0770.153NLT
Series: P0770NL
Height: 0.115 inches
Tolerance: ±20%
DC Resistance: 230mOhm Max
Current Rating: 900mA
Package/Case: Non-standard
Mounting: SMD (SMT)
Temperature Range: -40°C to 130°C
REACH: Unaffected
ECCN: EAR99
