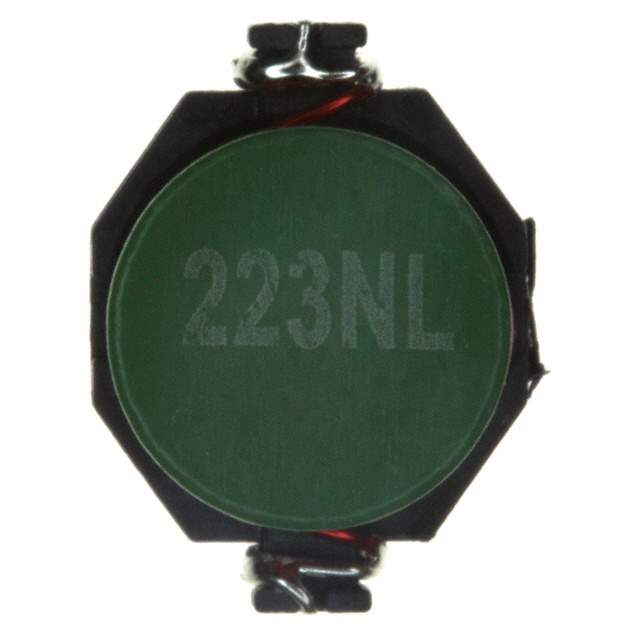

P0751.223NLT Real Image
Same model may have multiple batches, images only for reference.

P0751.223NLT

Part No P0751.223NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 22UH 2.6A 114 MOHM SMD
Datasheet
P0751.223NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 2.6A
Current - Saturation 2.6A
DC Resistance (DCR) 114 mOhm Max
Temperature Range - Operating -40°C to 130°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.215" (5.46mm)
Win Source Part Number 026223-P0751.223NLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P0751.223NLT CAD Model

Description

The P0751.223NLT is a wirewound inductor from Pulse Electronics Corporation.

  • Inductance: 22μH
  • Current Rating: 2.6A
  • Package: SMD (SMT)
  • Height: 0.215" (5.46mm)
  • Supply and Demand Status: Balanced
  • DC Resistance (DCR): 114 mOhm Max
  • Temperature Range: -40°C to 130°C
