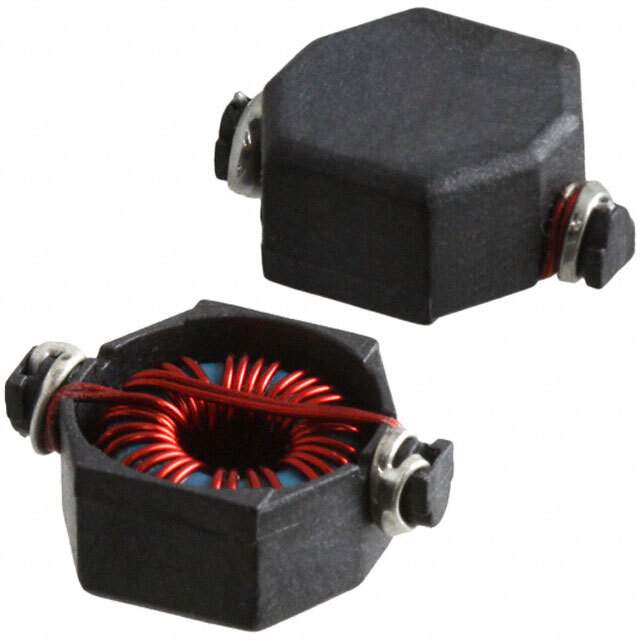

P0438NLT Real Image
Same model may have multiple batches, images only for reference.

P0438NLT

Part No P0438NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 12.2UH 500MA 161 MOHM / 12.2 µH Shielded Toroidal Inductor 500 mA 161mOhm Max Nonstandard
Datasheet
P0438NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series Ros 1
Package Tape & Reel
Type Toroidal
Inductance 12.2 µH
Tolerance ±15%
Current Rating (Amps) 500 mA
Shielding Shielded
DC Resistance (DCR) 161mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.335" L x 0.225" W (8.51mm x 5.72mm)
Height - Seated (Max) 0.125" (3.18mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-3800-2,553-3800-1,P0438NLT-ND,553-3800-6
Standard Package 2,000
Win Source Part Number 1083435-P0438NLT
Ultra Librarian 3D Model Ultra Librarian P0438NLT CAD Model

Description

The Ros 1 series toroidal fixed inductor from Pulse Electronics Power has a shielding of shielded and an inductance of 12.2 μH. The inductor has a maximum seated height of 0.125 inches (3.18mm) and a DC resistance (DCR) of 161mOhm max.

  • Series: Ros 1
  • Type: Toroidal Fixed Inductor
  • Shielding: Shielded
  • Inductance: 12.2 μH
  • Maximum Seated Height: 0.125 inches (3.18mm)
  • DC Resistance (DCR): 161mOhm max
  • Tolerance: ±15%
  • Operating Temperature Range: -40°C to 130°C
  • Mounting: SMD (SMT)
  • Packaging: Tape and Reel
  • Applications: Power Supplies, DC-DC Converters, Filtering Circuits
  • Compliance: RoHS, REACH
  • ECCN: EAR99
