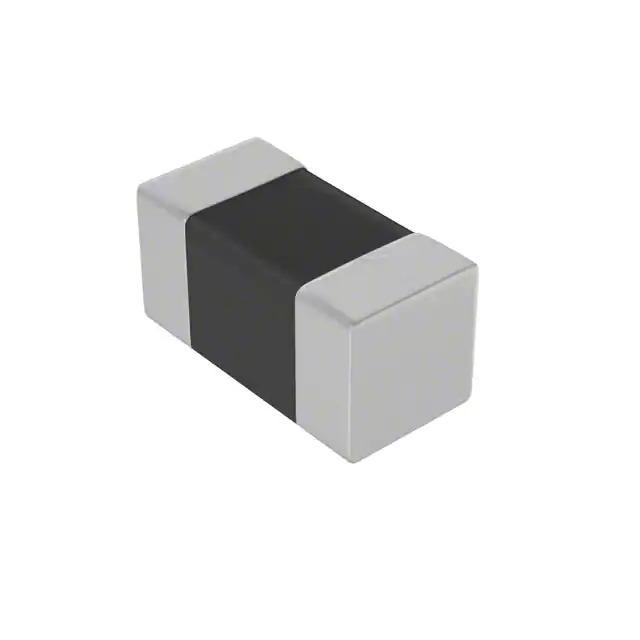

Same model may have multiple batches, images only for reference.
LPF1005LM55R0709A Pulse
Same model may have multiple batches, images only for reference.

LPF1005LM55R0709A

Part No LPF1005LM55R0709A
Manufacturer Pulse
Catalog RF Filters
Description FILTER LOW PASS SMD 0.69-0.96G
Datasheet
LPF1005LM55R0709A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Pulse Electronics
Series 1005
Package Tape & Reel
Product Status Active
Frequency 829MHz Center
Bandwidth 262MHz
Filter Type Low Pass
Ripple -
Insertion Loss 0.7dB
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric), 6 PC Pad
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) 0.018" (0.45mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1373354-LPF1005LM55R0709A
Ultra Librarian 3D Model Ultra Librarian LPF1005LM55R0709A CAD Model

Description

The 1373354-LPF1005LM55R0709A is a low pass RF filter designed by Pulse Electronics.

  • Series: 1005
  • Package: 0402 (1005 Metric), 6 PC Pad
  • Frequency: 829MHz center
  • Insertion Loss: 0.7dB
  • Bandwidth: 262MHz
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height: 0.018" (0.45mm)
  • Mounting Type: Surface Mountable
  • REACH: Unaffected
