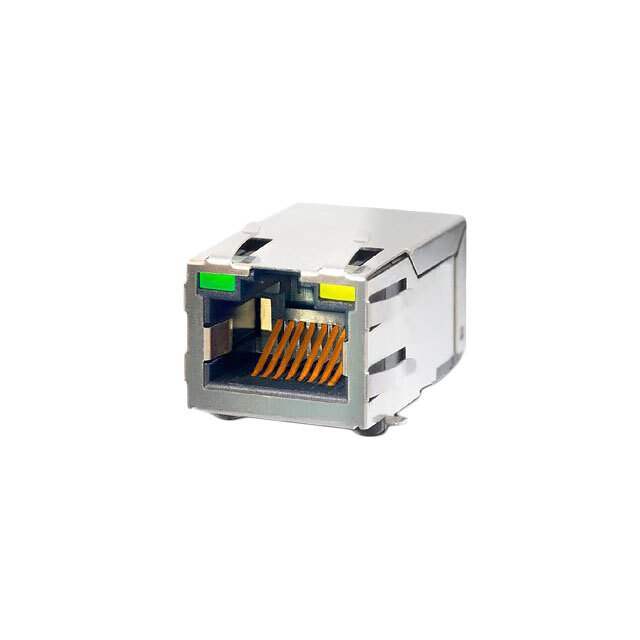

JX30-0005NL Pulse Electronics
Same model may have multiple batches, images only for reference.

JX30-0005NL

Part No JX30-0005NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX SMD
Datasheet
JX30-0005NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310415-JX30-0005NL
Category Connectors, Interconnects >Modular Connectors >Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Type Surface Mount
Orientation 90° Angle (Right)
Ultra Librarian 3D Model Ultra Librarian JX30-0005NL CAD Model

Description

100 Base-TX (Fast Ethernet) surface mount RJ45 single port (1x1) Tab-UP/DOWN with or without LEDS Integrated Magnetics Connector, designed to support applications such as: Set Top Box and Network Interface Cars (NIC).
