Same model may have multiple batches, images only for reference.

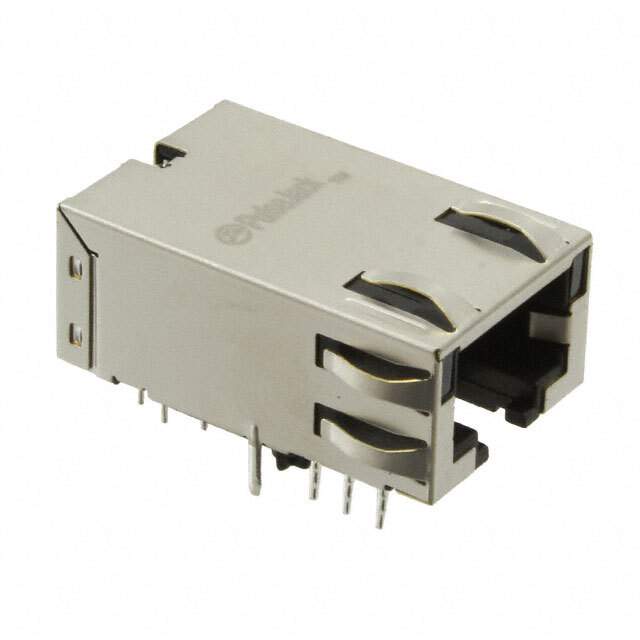

JT4-1109HL Real Image
Same model may have multiple batches, images only for reference.

JT4-1109HL

Part No JT4-1109HL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 10G BASE-T PCB / 1 Port RJ45Through Hole 10G Base-T, AutoMDIX
Datasheet
JT4-1109HL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10G Base-T, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.469" (11.90mm)
LED Color Green, Amber - Green, Amber
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide, Filter
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 50.0µin (1.27µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number JT4-1109HL-ND,553-2725,-JT4-1109HL,553-2725-5,553-2725-ND
Standard Package 50
Win Source Part Number 1333958-JT4-1109HL
Ultra Librarian 3D Model Ultra Librarian JT4-1109HL CAD Model

Description

The Pulse Electronics 1333958-JT4-1109HL is a shielded modular connector jack with magnetics designed for 10G Base-T and AutoMDIX applications.

  • Features: Board Guide, Filter
  • Orientation: Right Angle
  • Mounting: Through-Hole
  • Connector Type: RJ45
  • Row: Single
  • Termination: Solder
  • Contact Finish: Gold with a thickness of 50.0µin (1.27µm)
  • Contact Material: Phosphor Bronze
  • Height Above Board: 0.469" (11.90mm)
  • Shielding: EMI Finger
  • Housing Material: Thermoplastic
  • Package: 50
  • LED Color: Green and Amber
  • Cores per Jack: 8
  • Tab Direction: Down
  • Shield Material: Brass
  • Temperature Range: 0°C ~ 70°C
  • RoHS Compliant: Yes
