Same model may have multiple batches, images only for reference.

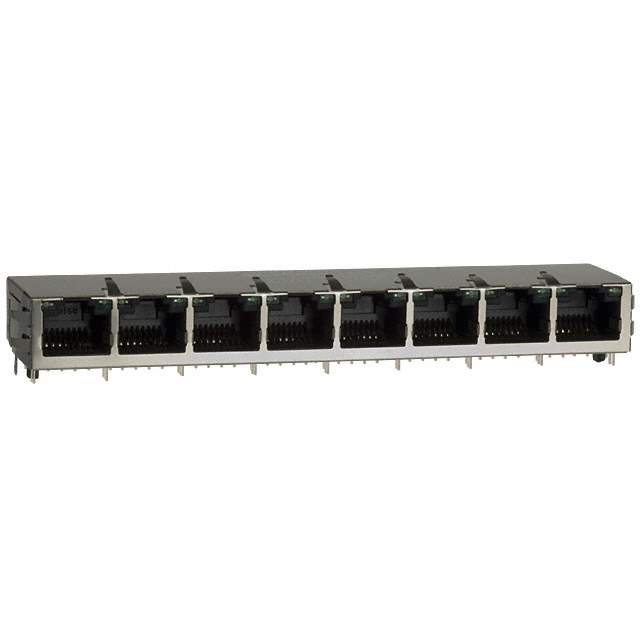

JG0-0028NL Real Image
Same model may have multiple batches, images only for reference.

JG0-0028NL

Part No JG0-0028NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 8PORT 1000 BASE-T PCB / 8 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
JG0-0028NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 8
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 553-1360
Standard Package 10
Win Source Part Number 1333935-JG0-0028NL
Ultra Librarian 3D Model Ultra Librarian JG0-0028NL CAD Model

Description

The Pulse Electronics RJ45 Modular Connector Jack with Magnetics is a high-performance connector suitable for 10/100/1000 Base-T and AutoMDIX applications.

  • Mounting: Through Hole
  • Orientation: 90 degree angle (right)
  • Ports: 8
  • Cores per Jack: 8
  • Shielding: EMI finger
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Housing Material: Thermoplastic
  • Shield Material: Brass
  • RoHS Compliant: Yes
  • Temperature Range: 0°C to 70°C
  • Package: 10 connectors
  • LED Color: Green - Green
  • Features: Board guide
