Part No J0026D21BNL
Manufacturer Pulse
Catalog Modular Connectors
Description Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port Cat 5/Cat 6 / CONN MAGJACK 1PORT 100 BASE-TX
Datasheet
J0026D21BNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Pulse Electronics Corporation
Packaging Bulk
Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 5
Features Board Guide
Contact Finish Gold
Temperature Range - Operating 0°C to 70°C
Contact Finish Thickness 15μin (0.38μm)
Shield Material Brass
Housing Material Thermoplastic
Win Source Part Number 018140-J0026D21BNL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name J0
Introduction Date December 09, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian J0026D21BNL CAD Model

Description

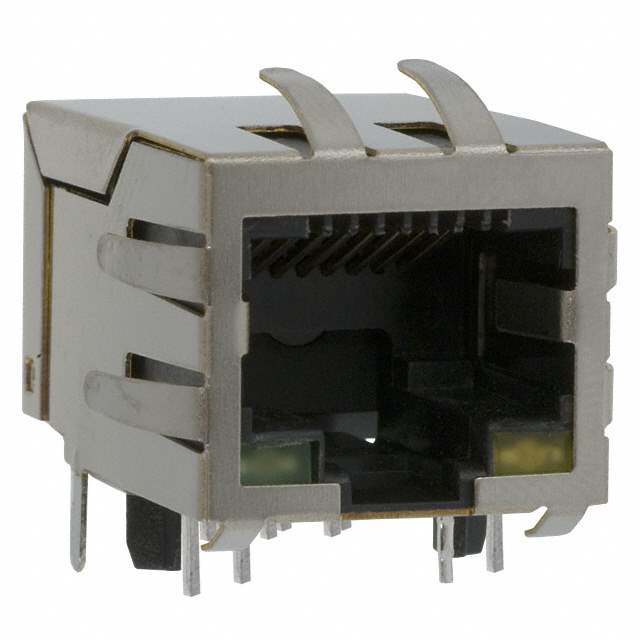

The Pulse Electronics Corporation J0026D21BNL is a through-hole RJ45 connector with board guide feature.

  • Row: Single
  • Port: 1
  • Orientation: 90° angle
  • Contact Finish: Gold
  • Thickness: 15μin (0.38μm)
  • Height Above Board: 0.545" (13.84mm)
  • Housing Material: Thermoplastic
  • Shield Material: Brass
  • Applications: 10/100 Base-TX
  • LED Color: Green-yellow
  • Cores per Jack: 5
  • Temperature Range: 0°C to 70°C
  • Demand: High
  • Supply: Limited
