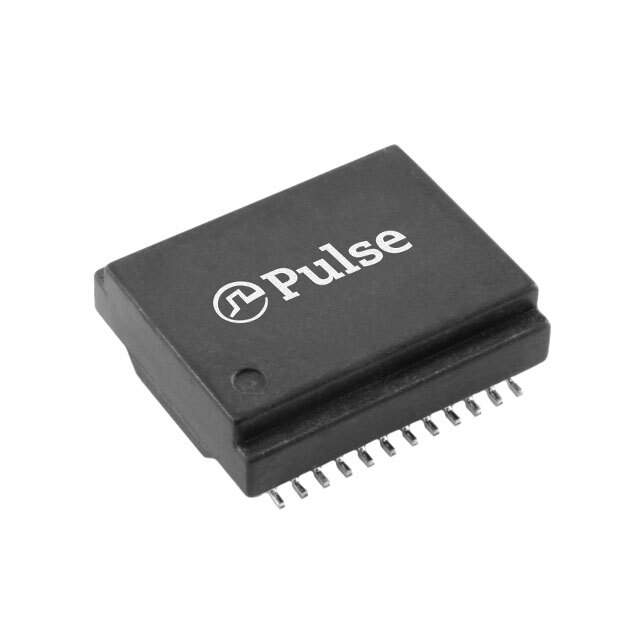

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.690" L x 0.600" W (17.53mm x 15.24mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating -40°C ~ 105°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 1840-1182-1,1840-1182-2,HM5004EFNLT-ND,1840-1182-6
Standard Package 300
Win Source Part Number 1183848-HM5004EFNLT
Ultra Librarian 3D Model Ultra Librarian HM5004EFNLT CAD Model

Description

The Pulse Electronics Network HM5004EFNLT is a transformer that is used in various applications.

  • Win Source Part Number: 1183848-HM5004EFNLT
  • Product Category: Transformers - Pulse
  • Package: Tape & Reel
  • Mounting Type: Surface Mount Device (SMD)
  • Inductance: 350µH
  • Temperature Range - Operating: -40°C ~ 105°C
  • Dimension: 0.690" L x 0.600" W (17.53mm x 15.24mm)
