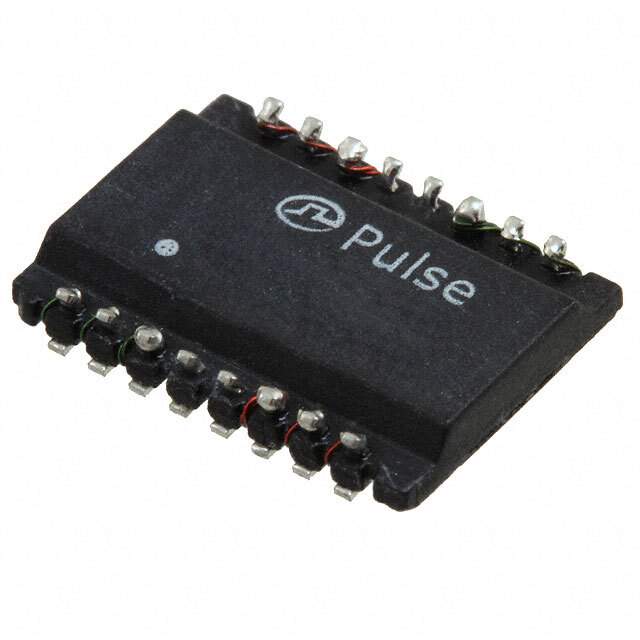

H0013FNLT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Pulse Electronics Network
Packaging Reel
Inductance 350μH
Mounting Style SMD
Dimension 0.488" L x 0.365" W (12.40mm x 9.27mm)
Height - Seated (Maximum) 0.073" (1.85mm)
Temperature Range - Operating 0°C ~ 70°C
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810137-H0013FNLT
Ultra Librarian 3D Model Ultra Librarian H0013FNLT CAD Model

Description

The Pulse Electronics Network transformer is a high-quality electronic component designed for a wide range of applications.

  • Inductance: 350μH
  • Temperature Range: 0°C to 70°C
  • Mounting Style: SMD
  • Dimension: 0.488” L x 0.365” W (12.40mm x 9.27mm)
  • Height Seated Maximum: 0.073” (1.85mm)
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (unlimited)
  • ET (Volt-Time): -
