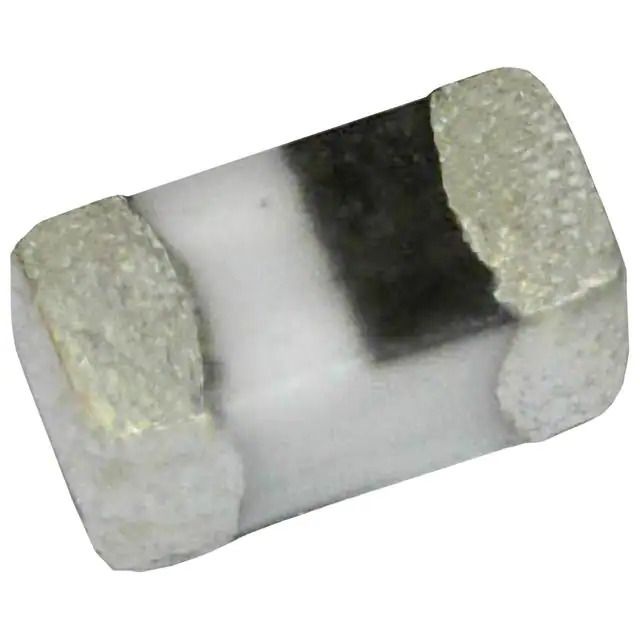

BSCQ000603031N8B00 Pulse
Same model may have multiple batches, images only for reference.

BSCQ000603031N8B00

Part No BSCQ000603031N8B00
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1.8NH 640MA 120MOHM SM
Datasheet
BSCQ000603031N8B00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series BSCQ
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Ceramic
Inductance 1.8 nH
Tolerance ±0.1nH
Current Rating (Amps) 640 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 120mOhm Max
Q @ Freq 14 @ 500MHz
Frequency - Self Resonant 10GHz
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 500 MHz
Features -
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Size / Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.013" (0.33mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369470-BSCQ000603031N8B00
Ultra Librarian 3D Model Ultra Librarian BSCQ000603031N8B00 CAD Model

Description

The BSCQ000603031N8B00 is a fixed inductor used in various applications, including RF circuits and power supplies. Manufactured by Pulse Electronics, this inductor is part of the BSCQ series.

  • Series: BSCQ
  • Package: 0201 (0603 Metric)
  • Packaging: Tape and Reel
  • Size: 0.024" L x 0.012" W (0.60mm x 0.30mm)
  • Seated Height: 0.013" (0.33mm)
  • Tolerance: ±0.1nH
  • Inductance: 1.8nH
  • Current Rating: 640mA
  • DC Resistance: 120mOhm Max
  • Status: Active
