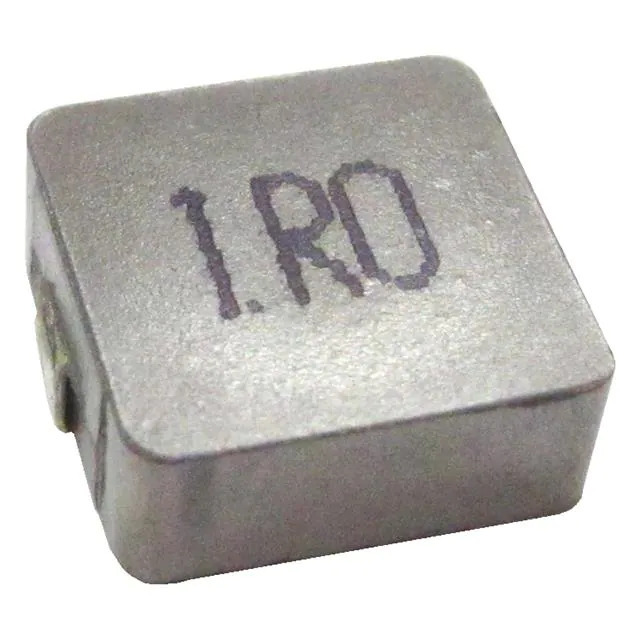

Same model may have multiple batches, images only for reference.

BMRA000404201R0MA1

Name: BMRA000404201R0MA1
Brand: Pulse
SKU: 1370334
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BMRA000404201R0MA1
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 1UH 4.5A 27 MOHM SMD
Datasheet	BMRA000404201R0MA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse Electronics
Series	BMRA
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	-
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	4.5 A
Current - Saturation (Isat)	7A
Shielding	Shielded
DC Resistance (DCR)	27mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.161" L x 0.181" W (4.10mm x 4.60mm)
Height - Seated (Max)	0.079" (2.00mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1370334-BMRA000404201R0MA1
Ultra Librarian 3D Model	Ultra Librarian BMRA000404201R0MA1 CAD Model

Alternative Products

Description

The BMRA series inductor from Pulse Electronics is a molded inductor with a size of 0.161" L x 0.181" W (4.10mm x 4.60mm) and a height of 0.079" (2.00mm).

Inductance: 1 µH
Current Rating: 4.5 A
Shielded: Yes
DC Resistance (DCR): 27mOhm maximum
Current Saturation (Isat): 7A
Tolerance: ±20%
Operating Temperature: -55°C to 125°C
ECCN: EAR99
