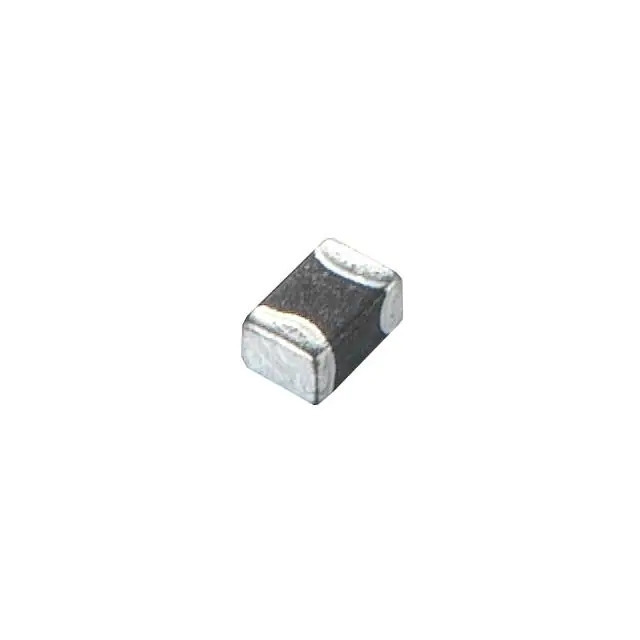

Same model may have multiple batches, images only for reference.
BBPY00201209101Y00 Pulse
Same model may have multiple batches, images only for reference.

BBPY00201209101Y00

Part No BBPY00201209101Y00
Manufacturer Pulse
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 100 OHM 0805 1LN
Datasheet
BBPY00201209101Y00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Pulse Electronics
Series BBPY
Package Tape & Reel
Product Status Active
Filter Type -
Number of Lines 1
Impedance @ Frequency 100 Ohms @ 100 MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 40mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369059-BBPY00201209101Y00
Ultra Librarian 3D Model Ultra Librarian BBPY00201209101Y00 CAD Model

Description

The 1369059-BBPY00201209101Y00 is a ferrite bead and chip filter from Pulse Electronics.

  • Type: Ferrite Bead and Chip Filter
  • Mounting Type: Surface Mount
  • Package: 0805 (2012 Metric)
  • Impedance: 100 Ohms @ 100 MHz
  • Current Rating: 3A
  • DC Resistance: 40mOhm
  • Temperature Range: -55°C to 125°C
  • Shielding: Unshielded
  • Height: 0.043" (1.10mm)
  • Manufacturer: Pulse Electronics
