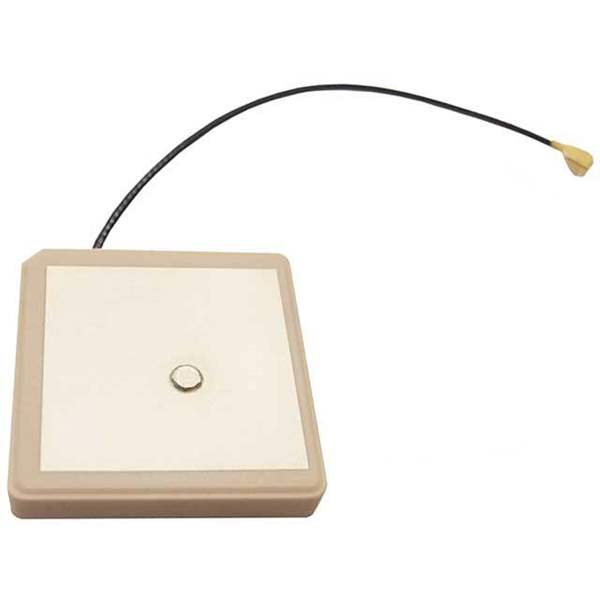

ANT2525JB08B1575A Pulse – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ANT2525JB08B1575A

Part No ANT2525JB08B1575A
Manufacturer Pulse
Catalog RF Antennas
Description RF ANTENNA GPS Ceramic Patch U.FL (UMCC), I-PEX MHF1 Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics
Series 2525
Packaging Bulk
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 2
Gain 5.5dBic
Features LNA
Termination U.FL (UMCC), I-PEX MHF1
Mounting Type Surface Mount
Height (Max) 0.236" (6.00mm)
Applications GPS
Base Product Number ANT2525
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.4040
Win Source Part Number 1477754-ANT2525JB08B1575A
Ultra Librarian 3D Model Ultra Librarian ANT2525JB08B1575A CAD Model
