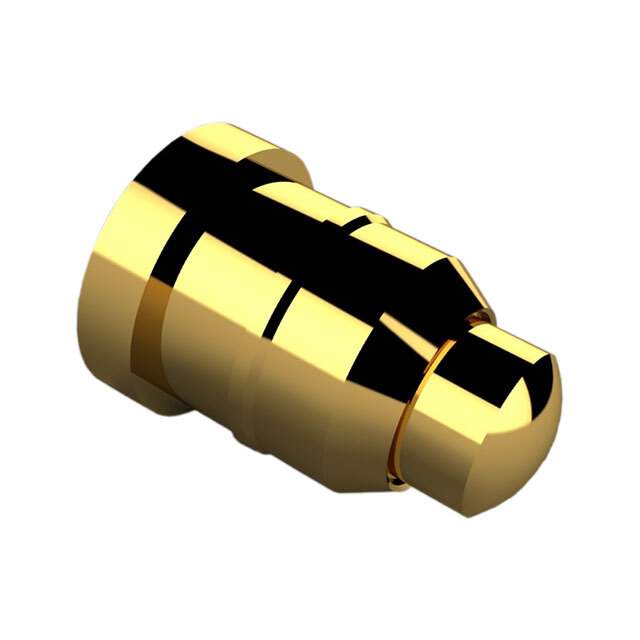

90173-AS Real Image
Same model may have multiple batches, images only for reference.

90173-AS

Part No 90173-AS
Manufacturer Preci-Dip
Catalog Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED SMD GOLD / Contact Spring Surface Mount
Datasheet
90173-AS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts, Spring Loaded (Pogo Pins), and Pressure
Mfr Preci-Dip
Package Bulk
Contact Type Sleeve & Plunger (Pogo Pins)
Mounting SMD (SMT)
Maximum Working Height 0.100" (2.54mm)
Minimum Working Height 0.077" (1.95mm)
Pad Layout Dimension Circular - 0.069" (1.76mm)
Operating Force - Initial 40.79gf
Operating Force - Mid Compression 86.68gf
Plunger Size 0.039" (1.00mm) Dia
Mating Cycles 40000
Contact Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Current Rating (Amps) 2A
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 90173
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 1212-1881,90173-AS-ND
Standard Package 5,000
Win Source Part Number 1008428-90173-AS
Ultra Librarian 3D Model Ultra Librarian 90173-AS CAD Model

Description

The 1008428-90173-AS is a brass alloy sleeve and plunger (pogo pins) connector that is suitable for SMD (SMT) mounting.

  • Material: Brass Alloy
  • Type: Sleeve and Plunger (Pogo Pins)
  • Mounting: SMD (SMT)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Maximum Current Rating: 2A
  • Minimum Working Height: 0.077" (1.95mm)
  • Maximum Working Height: 0.100" (2.54mm)
  • Circular Pad Layout Dimension: 0.069" (1.76mm)
  • Operating Force - Initial: 40.79gf
  • Temperature Range: -55°C to 125°C
  • Mating Cycle: 40000
  • Supplied: Bulk
  • Standard Package: 5,000
  • ECCN: EAR99
  • REACH: Unaffected
  • Plunger Size: 0.039" (1.00mm) diameter
