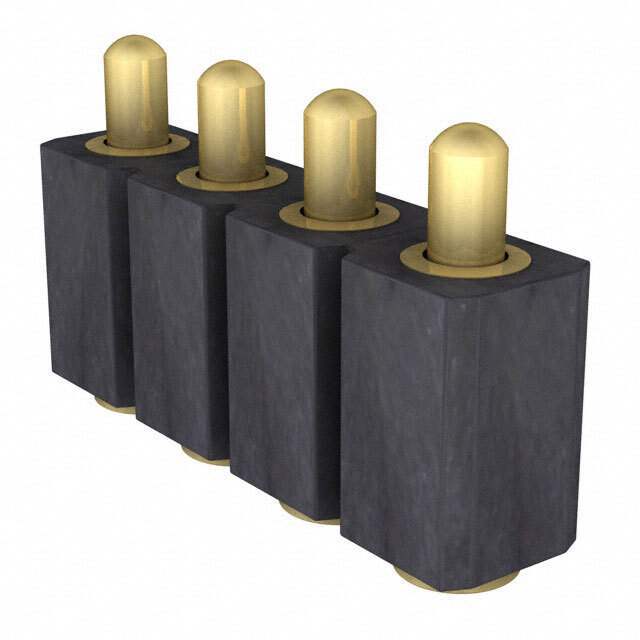

811-S1-004-30-016101 Preci-Dip
Same model may have multiple batches, images only for reference.

811-S1-004-30-016101

Part No 811-S1-004-30-016101
Manufacturer Preci-Dip
Catalog Rectangular Connectors
Description CONN SPRING PISTON 4POS SMD
Datasheet
811-S1-004-30-016101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305404-811-S1-004-30-016101
Manufacturer Preci-Dip
Category Connectors, Interconnects Rectangular Connectors- Spring Loaded
Packaging  Bulk
Part Status Active
Connector Type Piston
Number of Contacts 4
Pitch (mm) 0.100" (2.54mm)
Number of Rows 1
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 811-S1-004-30-016101 CAD Model

Description

Low resistance modular connectors with spring-loaded contacts (SLC), surface mount. Contacts with improved, shaped piston design
