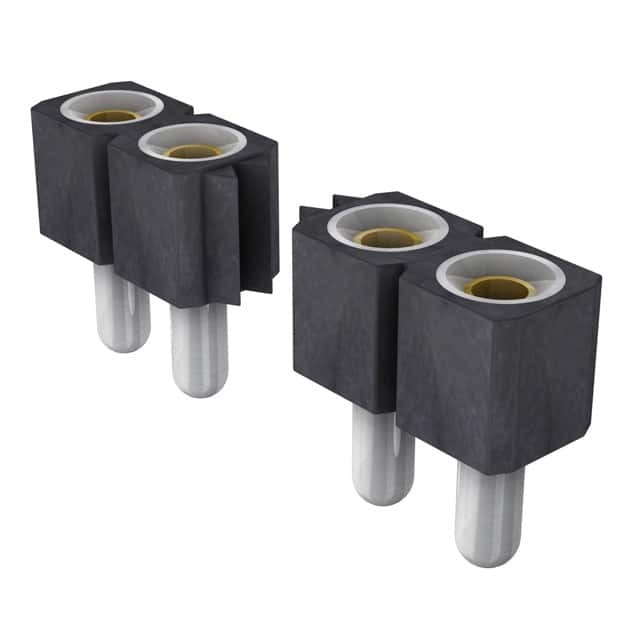

Same model may have multiple batches, images only for reference.

801-87-005-10-268101

Name: 801-87-005-10-268101
Brand: Preci-Dip
SKU: 858315
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	801-87-005-10-268101
Manufacturer	Preci-Dip
Catalog	Rectangular Connectors
Description	CONN SOCKET 5POS 0.1 GOLD PCB / 5 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	801-87-005-10-268101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Preci-Dip
Series	801
Package	Bulk
Product Status	Active
Connector Type	Socket
Contact Type	Female Socket
Style	Board to Board
Number of Positions	5
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.116" (2.95mm)
Contact Length - Post	0.108" (2.75mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3A
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	801-87
Standard Package	1,130 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	858315-801-87-005-10-268101
Ultra Librarian 3D Model	Ultra Librarian 801-87-005-10-268101 CAD Model

Alternative Products

Description

The 858315-801-87-005-10-268101 is a female socket connector from Preci-Dip.

Series: 801
Number of Positions: 5
Mounting Type: Through Hole
Fastening Type: Push-Pull
Contact Material: Beryllium Copper
Pitch: 0.100" (2.54mm)
Contact Finish: Gold
Current Rating: 3A
Temperature Range: -55°C ~ 125°C
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Color: Black
Insulation Height: 0.116" (2.95mm)
Packaging: Bulk
Standard Package: 1,130 pcs
Product Status: Active
ECCN: EAR99
REACH Status: Unaffected
