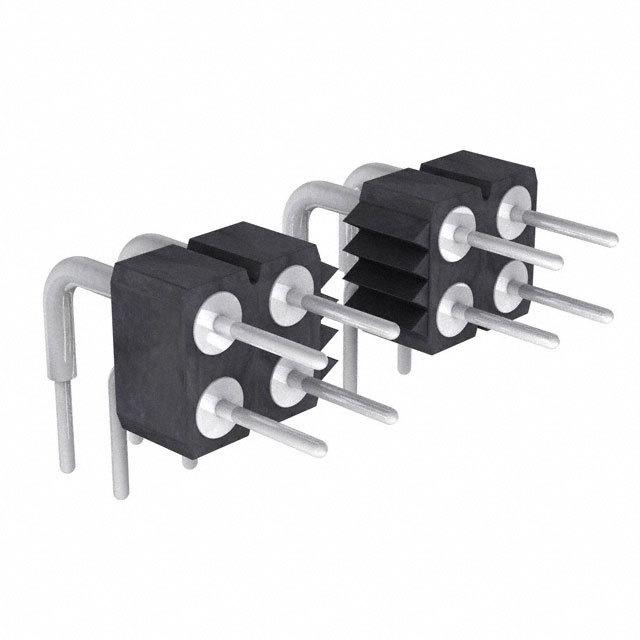

499-80-236-10-009101

Name: 499-80-236-10-009101
Brand: Preci-Dip
SKU: 425198
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	499-80-236-10-009101
Manufacturer	Preci-Dip
Catalog	Rectangular Connectors
Description	CONN HDR 36POS 2.54MM T/H R/A
Datasheet	499-80-236-10-009101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Preci-Dip
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.200" (5.08mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3A
Voltage Rating	150VDC
Win Source Part Number	1010807-499-80-236-10-009101
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 499-80-236-10-009101 CAD Model

Alternative Products

Description

The Preci-Dip header connector is a 36-position male pin connector with a voltage rating of 150VDC and a current rating of 3A.

Number of Positions: 36
Connector Type: Header, Male Pin
Voltage Rating: 150VDC
Current Rating: 3A
Pitch: 2.54mm
Application: Board-to-Board
Flammability Rating: UL94 V-0
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Temperature Range: -55°C to 125°C
Mounting Style: Through Hole, Right Angle
Category: Connectors and Interconnects
