Same model may have multiple batches, images only for reference.

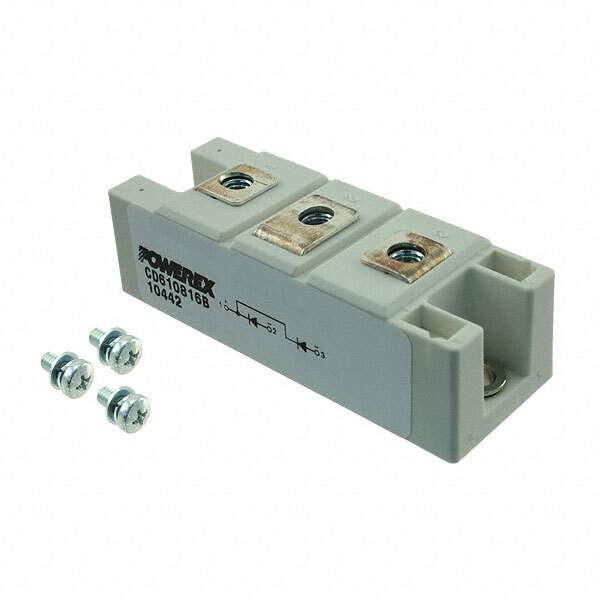

CD610816B Real Image
Same model may have multiple batches, images only for reference.

CD610816B

Part No CD610816B
Manufacturer Powerex Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 800V 160A POWRBLOK / Diode Array 1 Pair Series Connection Standard 800 V 160A Chassis Mount POW-R-BLOK™ Module
Datasheet
CD610816B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer Powerex Inc.
Packaging Bulk
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) (per Diode) 160A
Voltage - Forward (Vf) (Max) @ If 1.43 V @ 520 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 20 mA @ 800 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Chassis Mount
Case / Package POW-R-BLOK™ Module
Supplier Device Package POW-R-BLOK™ Module
Base Product Number CD610816
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number CD610816B-ND,835-1073
Standard Package 1
Win Source Part Number 1325101-CD610816B
Ultra Librarian 3D Model Ultra Librarian CD610816B CAD Model

Description

This POW-R-BLOK™ module is a diode rectifier array with a voltage rating of 800V and a current rating of 160A.

  • Recovery Time: >500ns
  • Reverse Leakage Current: 20mA @ 800V
  • Diode Configuration: 1 pair series connection
  • Mount: Chassis mount
  • Designed for: Use in electronic devices that require rectification of AC to DC power
