Same model may have multiple batches, images only for reference.

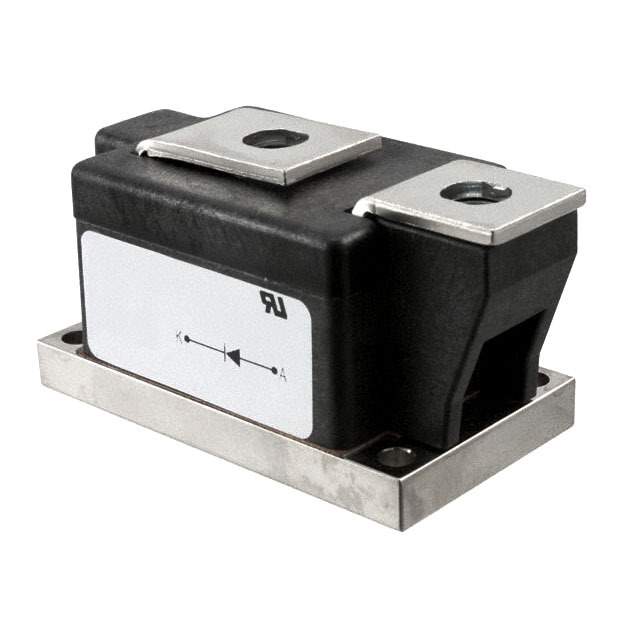

LS412260 Real Image
Same model may have multiple batches, images only for reference.

LS412260

Part No LS412260
Manufacturer Powerex Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GP 2.2KV 600A POWRBLOK  /  Diode Standard 2200 V 600A Chassis Mount POW-R-BLOK™ Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Powerex Inc.
Package Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 2200 V
Current - Average Rectified (Io) 600A
Voltage - Forward (Vf) (Max) @ If 1.19 V @ 1800 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 40 mA @ 2200 V
Mounting Type Chassis Mount
Package / Case POW-R-BLOK™ Module
Supplier Device Package POW-R-BLOK™ Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 1
Win Source Part Number 1219815-LS412260
Ultra Librarian 3D Model Ultra Librarian LS412260 CAD Model

Description

The 1219815-LS412260 is a standard diode rectifier with a maximum reverse voltage of 2200V and an average rectified current of 600A. The diode has a forward voltage of 1.19V at 1800A and a reverse leakage current of 40mA at 2200V. It is a chassis mount type with a POW-R-BLOK™ module package. The diode is designed for standard recovery with a speed of >500ns and >200mA (Io). The diode is manufactured by Powerex Inc.
