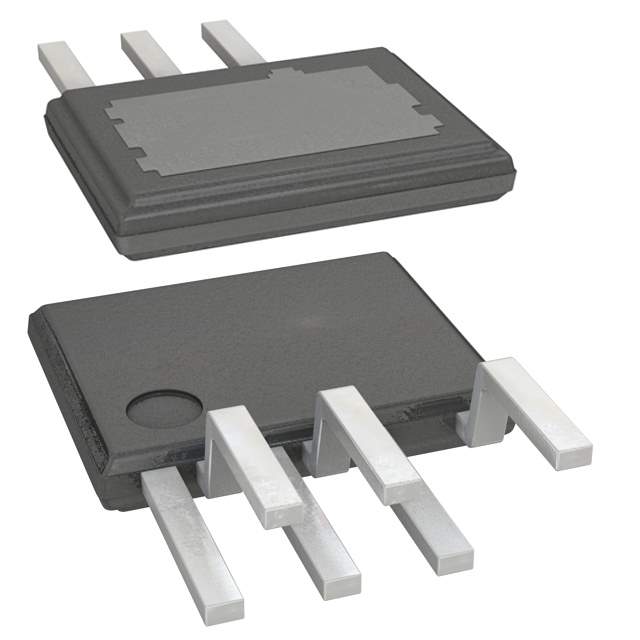

TOP266EG Real Image
Same model may have multiple batches, images only for reference.

TOP266EG

Part No TOP266EG
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description AC to DC Switching Converter Off-Line Switcher 6-Pin ESIP-C / IC OFFLINE SW PWM OCP OVP 7ESIP
Datasheet
TOP266EG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz, 132kHz
Power (Watts) 119W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features Frequency Control
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package eSIP-7C
Mounting Through Hole
Win Source Part Number 213238-TOP266EG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TOP266
Introduction Date March 02, 2010
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TOP266EG CAD Model

Description

The TOP266EG from Power Integrations is a flyback topology integrated circuit that has an output isolation and internal switches.

  • Power Rating: 119W
  • Voltage Breakdown: 725V
  • Duty Cycle: 78%
  • Switching Frequency: 66kHz and 132kHz
  • Feature: frequency control
  • Fault Protection: current limiting, overload, over temperature, over voltage, and short circuit
  • Package: eSIP-7C
  • Operating Temperature Range: -40°C to 150°C
  • Usage: integrated circuits
