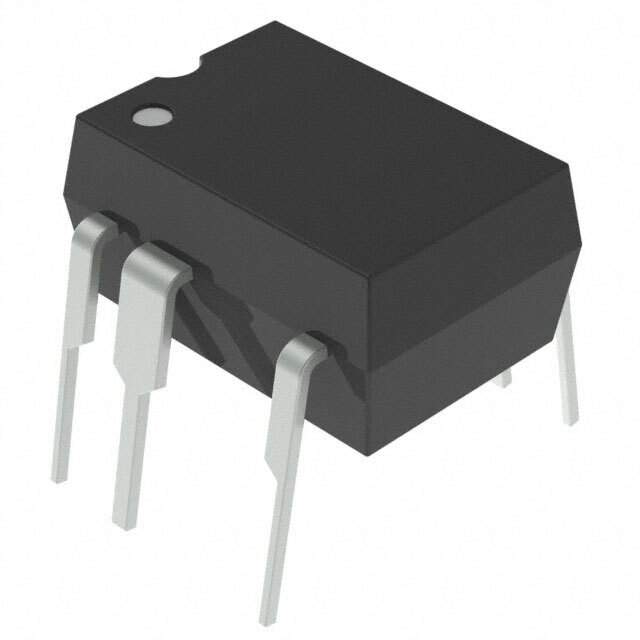

TOP254PN Real Image
Same model may have multiple batches, images only for reference.

TOP254PN

Part No TOP254PN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWIT PROG OVP 8DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz
Power (Watts) 28W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Operating Temperature -40°C to 150°C (TJ)
Case / Package DIP-8C
Mounting Through Hole
Win Source Part Number 053543-TOP254PN
Family Name TOP254
Introduction Date August 01, 2008
ECCN EAR99
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TOP254PN CAD Model

Description

The TOP254PN is a power integrations IC that is widely used in electronic devices.

  • Power: 28W
  • Isolation: Isolated with a voltage breakdown of 700V
  • Topology: Flyback
  • Duty Cycle: 78%
  • Switching Frequency: 66kHz
  • Fault Protection: Current limiting, over temperature, and over voltage
  • Operating Temperature: -40°C to 150°C (TJ)
  • Package: DIP-8C
  • Commonly Used Part: Yes
  • Popularity: High
  • Estimated EOL Date: 2022
  • ECCN: EAR99
