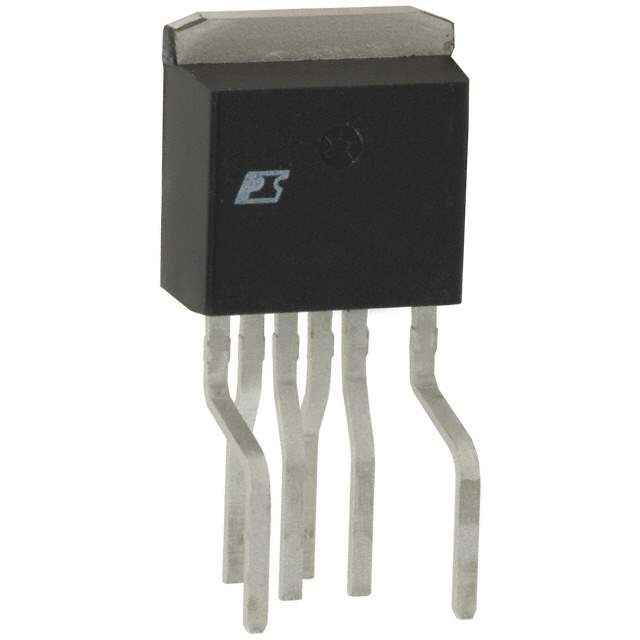

TOP242FN Real Image
Same model may have multiple batches, images only for reference.

TOP242FN

Part No TOP242FN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWIT UVLO HV TO262
Datasheet
TOP242FN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 66.5%
Frequency - Switching 66kHz to 132kHz
Power (Watts) 22W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package TO-262-7C
Mounting Through Hole
Win Source Part Number 048080-TOP242FN
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TOP242FN CAD Model

Description

The Power Integrations TOP242FN is a flyback topology integrated circuit that can deliver up to 22W power with an output isolation feature.

  • Internal Switches: internal switches
  • Voltage Breakdown: 700V
  • Duty Cycle: 66.5%
  • Switching Frequency: 66kHz to 132kHz
  • Fault Protection: current limiting, over-temperature, and over-voltage
  • Frequency Control: frequency control
  • Package: TO-262-7C package
  • Description: suitable for use in various electronic devices that require a flyback topology power supply.
