Same model may have multiple batches, images only for reference.

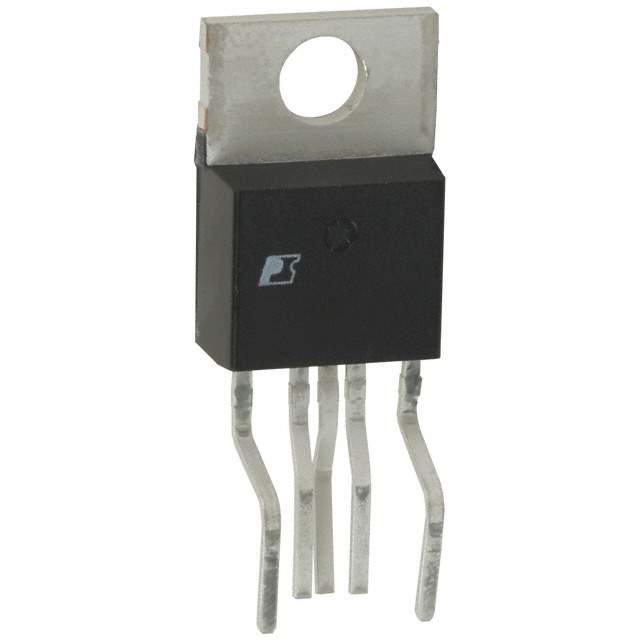

TOP232YN Real Image
Same model may have multiple batches, images only for reference.

TOP232YN

Part No TOP232YN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWIT OVP UVLO TO220
Datasheet
TOP232YN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Not For New Designs
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz to 132kHz
Power (Watts) 25W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package TO-220-7B
Mounting Through Hole
Win Source Part Number 033360-TOP232YN
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TOP232YN CAD Model

Description

The Power Integrations TOP232YN is a flyback converter from Power Integrations.

  • Isolation: isolation between the primary and secondary circuits
  • Power Rating: 25W
  • Operating Temperature Range: -40°C to 150°C
  • Fault Protection: current limiting, over temperature, and over voltage protection
  • Supply and Demand Status: limited
  • Product Status: Not recommended for new designs
