Same model may have multiple batches, images only for reference.

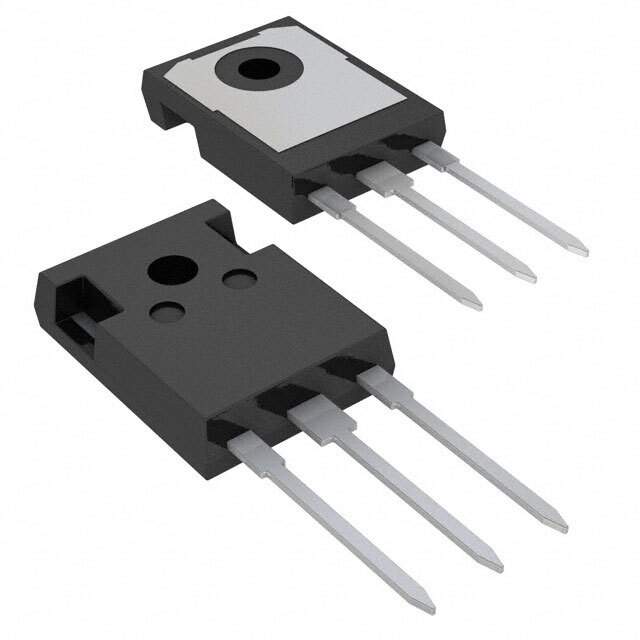

LQA60A300C Real Image
Same model may have multiple batches, images only for reference.

LQA60A300C

Part No LQA60A300C
Manufacturer Power Integrations
Catalog Diodes, Rectifiers - Arrays
Description 300 V, 60 A Q-Series Common-Cathode Diode
Datasheet
LQA60A300C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Power Integrations
Series Qspeed
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 300V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Maximum) @ If 1.95V @ 30A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 13.7ns
Current - Reverse Leakage @ Vr 250μA @ 300V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Package TO-247-3
Manufacturer Package TO-247AD
Win Source Part Number 1204332-LQA60A300C
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Limited
Family Name LQA60A300C
Introduction Date March 24, 2011
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian LQA60A300C CAD Model

Description

The Power Integrations LQA60A300C is a fast recovery schottky diode with a reverse recovery time of 13.7ns.

  • Type: Schottky Diode
  • Reverse Recovery Time: 13.7ns
  • Current Reverse Leakage: 250μA @ 300V
  • Voltage Forward: 1.95V @ 30A
  • Voltage Reverse (Max): 300V
  • Package: TO-247AD
  • Current Average Rectified: 30A
  • Series: Qspeed
  • Suitable for: Discrete semiconductor products
  • Supply and Demand: Limited
