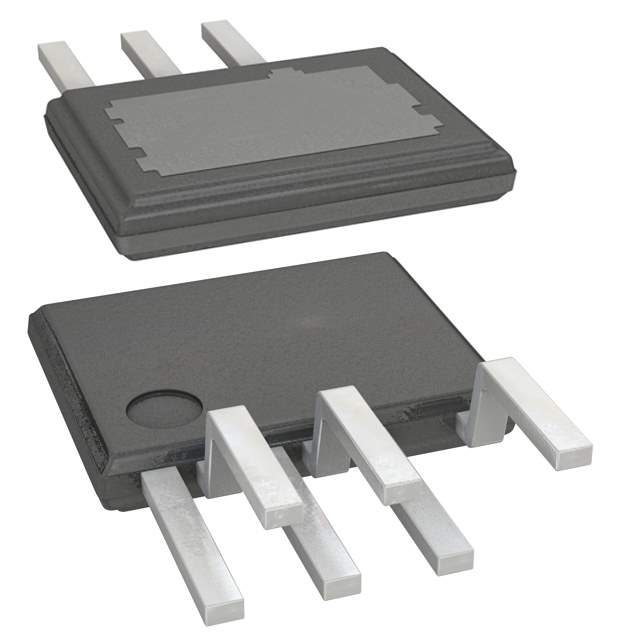

LNK6764E Real Image
Same model may have multiple batches, images only for reference.

LNK6764E

Part No LNK6764E
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFF-LINE SWITCH PWM 7SIP / AC to DC Switching Converter Off-Line Switcher 120kHz to 136kHz 6-Pin ESIP-C
Datasheet
LNK6764E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Power Integrations
Series LinkSwitch-HP
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Duty Cycle 64%
Frequency - Switching 120kHz ~ 136kHz
Power (Watts) 47W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 7-SIP, 6 Leads, Exposed Pad, Formed Leads
Manufacturer Package eSIP-7C
Mounting Style Through Hole
Win Source Part Number 779663-LNK6764E
Popularity Medium
Supply and Demand Status Limited
Family Name LNK6764
Introduction Date July 24, 2012
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian LNK6764E CAD Model

Description

The Power Integrations LNK6764E is an integrated circuit that belongs to the LinkSwitch-HP series.

  • Power Rating: 47W
  • Voltage Breakdown: 650V
  • Isolation: Isolated
  • Topology: Flyback
  • Duty Cycle: 64%
  • Fault Protection: Current limiting, over load, over temperature, over voltage, short circuit
  • Package: 7-SIP, 6 leads, exposed pad, formed leads
  • Operating Temperature: -40°C to 150°C
  • EOL Date: 2030 (Estimated)
  • RoHS Compliant: Yes
