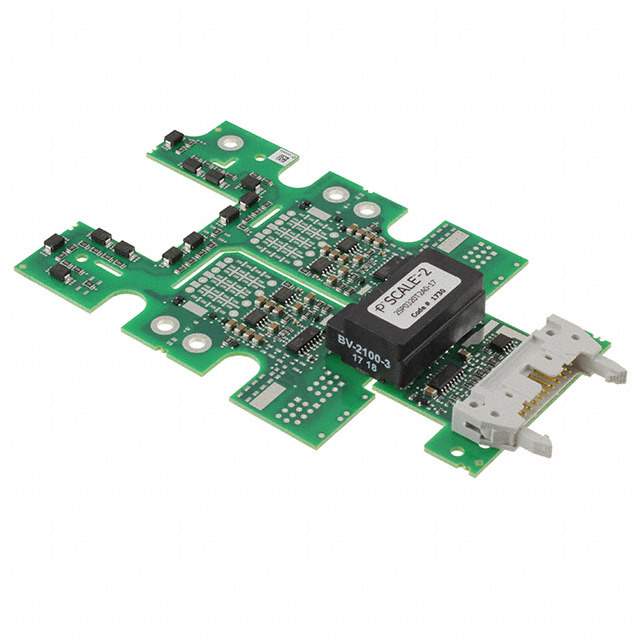

2SP0320T2B0-12 Real Image
Same model may have multiple batches, images only for reference.

2SP0320T2B0-12

Part No 2SP0320T2B0-12
Manufacturer Power Integrations
Catalog PMIC - Gate Drivers
Description IC DUAL GATE DRIVER 20A
Datasheet
2SP0320T2B0-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Power Integrations
Series SCALE-2
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT
Operating Supply Voltage 14.5 V ~ 15.5 V
Current - Peak Output (Source, Sink) 20A, 20A
High Side Voltage - Max (Bootstrap) 1200V
Rise / Fall Time (Typ) 7ns, 25ns
Operating Temperature Range -40°C ~ 85°C (TA)
Win Source Part Number 763033-2SP0320T2B0-12
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SP0320T2B0-12 CAD Model

Description

The Power Integrations SCALE-2 electronic component is a high-performance product that offers a reliable and efficient solution for your electronic needs.

  • Win Source Part Number: 763033-2SP0320T2B0-12
  • Series: SCALE-2
  • Gate Type: IGBT
  • High Side Voltage: 1200V
  • Operating Temperature Range: -40°C to 85°C
  • Channels: Two independent
