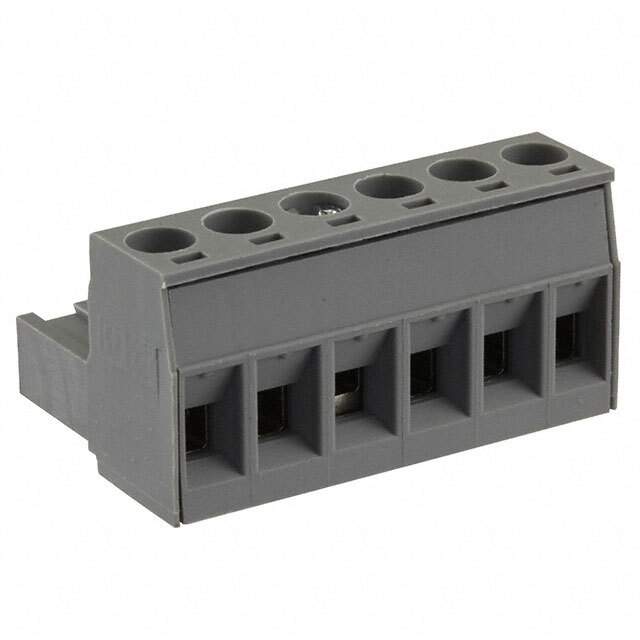

The Phoenix Contact 1334618-5435763 is a terminal block header plug with female sockets used in various applications.

• Manufacturer: Phoenix Contact
• Positions per Level: 6
• Levels: 1
• Pitch: 0.200" (5.08mm)
• Header Orientation: 180°
• Termination Style: Screw
• Current Rating (IEC): 12A
• Current Rating (UL): 15A
• Voltage Rating (IEC): 630V
• Voltage Rating (UL): 300V
• Wire Gauge or Range: 12-30 AWG or 0.2-2.5mm2
• Color: Gray
• Contact Mating Finish: Tin
• Housing Material: Polyamide (PA), Nylon
• Housing Material Flammability Rating: UL94 V-0
• Mounting: Free-Hanging (In-Line)
• Screw Size: M3
• Torque Screw: 0.4-0.5 Nm (3.5-4.4 Lb-In)
• Insulation Height: 0.591" (15.00mm)
