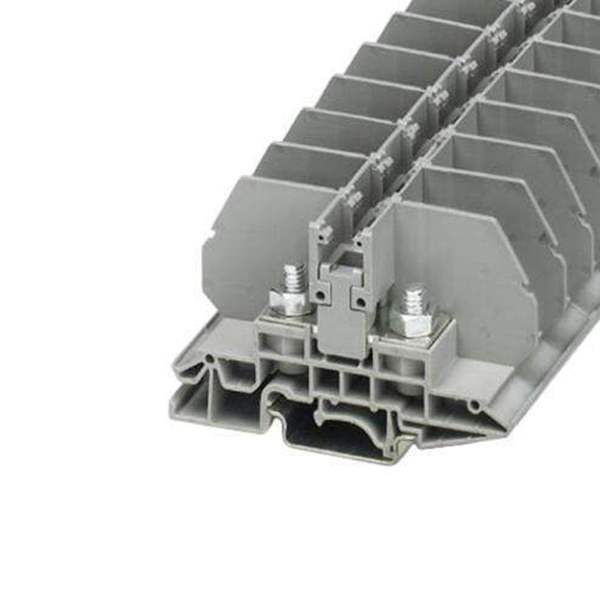

3075896 Phoenix Contact
Same model may have multiple batches, images only for reference.

3075896

Part No 3075896
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description CONN TERM BLK FEED THRU 2-12 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Phoenix Contact
Category Connectors, Interconnects Terminal Blocks Din Rail, Channel
Package Bulk
Product Status Active
Type Feed Through
Terminal - Width 17.0mm
Termination Style Bolt and Nut
Current - IEC 125 A
Voltage - IEC 800V
Current - UL 115 A
Win Source Part Number WS1207757-3075896
Ultra Librarian 3D Model Ultra Librarian 3075896 CAD Model

Description

Bolt connection terminal block, nom. voltage: 800 V, nominal current: 125 A, number of connections: 2, number of positions: 1, connection method: Bolt connection, Rated cross section: 35 mm2 , mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray
