Same model may have multiple batches, images only for reference.

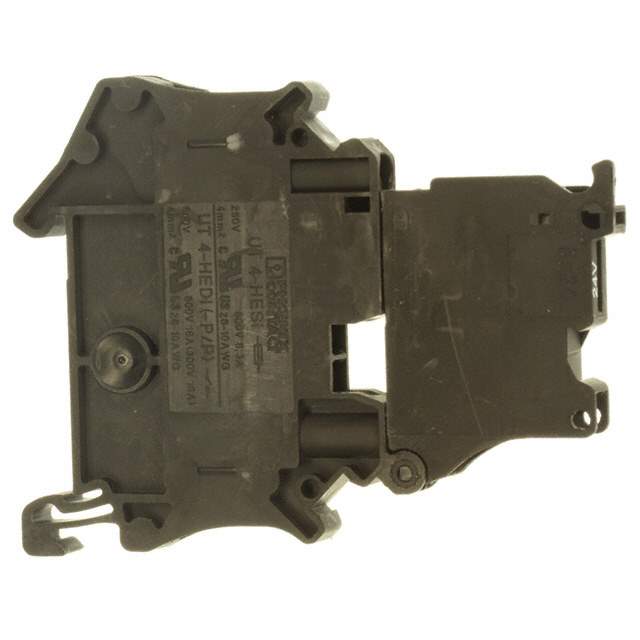

3046090 Real Image
Same model may have multiple batches, images only for reference.

3046090

Part No 3046090
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description CONN TERM BLK DISCONN 10-26AWG / Terminal Block Connector 2 Position Disconnect Black 10-26 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Din Rail, Channel
Manufacturer Phoenix Contact
Packaging Box
Type Disconnect
Disconnect Type Fuse, Lever
Number of Positions 2
Number of Levels 1
Terminal - Width 6.2mm
Termination Style Screw
Current - IEC 6.3 A
Voltage - IEC 500V
Current - UL 6.3 A
Voltage - UL 600V
Wire Gauge or Range - AWG 10-26 AWG
Wire Gauge or Range - mm2 0.14-6mm²
Features LED
Color Black
Fuse Type 5mm x 20mm
Material - Insulation Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Stripping Length 9mm
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 277-2035,UT4-HESILED24(5X20),UT4-HESULED24(5X20)
Standard Package 50
Win Source Part Number 1332305-3046090
Ultra Librarian 3D Model Ultra Librarian 3046090 CAD Model

Description

The Phoenix Contact 1332305-3046090 is a 2-position, 1-level, black disconnect terminal block with a screw termination style.

  • Positions: 2
  • Levels: 1
  • Color: Black
  • Type: Disconnect Terminal Block
  • Termination Style: Screw
  • Current: 6.3 A
  • Voltage (IEC): 500V
  • Voltage (UL): 600V
  • Wire Gauge: 10-26 AWG or 0.14-6mm²
  • LED: Yes
  • Insulation Material: Polyamide (PA), Nylon
  • Material Flammability Rating: UL94 V-0
  • Fuse Type: 5mm x 20mm
  • Standard Package: 50
  • Terminal Width: 6.2mm
  • Stripping Length: 9mm
  • Disconnect Type: Fuse, Lever
  • ECCN: EAR99
  • RoHS Compliant: Yes
